Compare Excavators. Choose Smarter.
HYUNDAI 85A SMART VS Komatsu PC210 LC Comparison

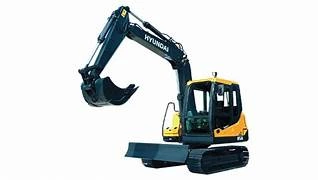

HYUNDAI 85A SMART
₹ 33 L - 35 L
VS

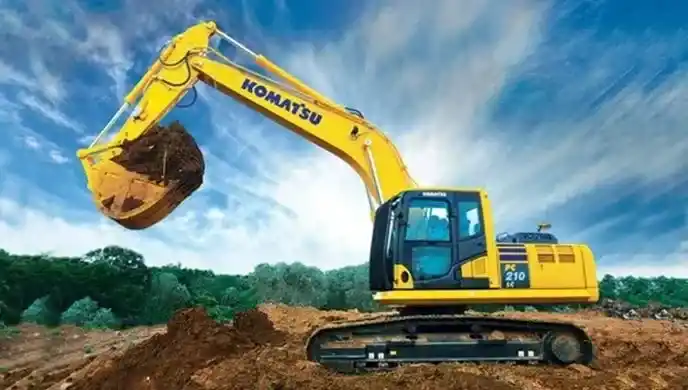

Komatsu PC210 LC
₹ 41 L - 43 L
HYUNDAI 85A SMART
₹33L
Komatsu PC210 LC
₹41L
Compare excavators helps you make an informed purchase decision.
HYUNDAI 85A SMART
From ₹ 33 Lakh
Komatsu PC210 LC
From ₹ 41 Lakh
Engine
Model
Kirloskar 4R1040NA diesel
Komatsu SAA6D107E-3
Model
Kirloskar 4R1040NA diesel
Komatsu SAA6D107E-3
Gross Power
56.7 kW (76 hp) @ 2200 kw
123 kw
Gross Power
56.7 kW (76 hp) @ 2200 kw
123 kw
Net Power
56.7 kW (76 hp) @ 2200 kw
122.8 kw
Net Power
56.7 kW (76 hp) @ 2200 kw
122.8 kw
Engine Power
76 HP
165 HP
Engine Power
76 HP
165 HP
Engine Displacement
6700 cc
6,690 cc
Engine Displacement
6700 cc
6,690 cc
Number Of Cylinders
6 Nos
6 Nos
Number Of Cylinders
6 Nos
6 Nos
Rated RPM
2200 rpm
2000 rpm
Rated RPM
2200 rpm
2000 rpm
Emission Standard
Stage III
Tier 4
Emission Standard
Stage III
Tier 4
Max Torque
289 Nm
729 Nm
Max Torque
289 Nm
729 Nm
Fuel Type
Diesel
Diesel
Fuel Type
Diesel
Diesel
Operating Weight
Operating Weight
8000 kg
21100 kg
Operating Weight
8000 kg
21100 kg
Machine Weight
8000 kg
21100 kg
Machine Weight
8000 kg
21100 kg
Counter Weight
4200 kg
4400 kg
Counter Weight
4200 kg
4400 kg
Ground Pressure
26 kg
51 kg
Ground Pressure
26 kg
51 kg
Hydraulic System
Main Pump Type
Two variable-displacement piston pumps
Variable displacement piston pump (HydrauMind System)
Main Pump Type
Two variable-displacement piston pumps
Variable displacement piston pump (HydrauMind System)
Maximum Hydraulic Flow
151.2 L/min
490 L/min
Maximum Hydraulic Flow
151.2 L/min
490 L/min
Maximum System Pressure
280 bar
380 bar
Maximum System Pressure
280 bar
380 bar
Hydraulic Oil Capacity
130 litres
234 litres
Hydraulic Oil Capacity
130 litres
234 litres
Auxiliary Hydraulic Flow
180 L/min
180 L/min
Auxiliary Hydraulic Flow
180 L/min
180 L/min
Working Range
Max Digging Depth
4150 mm
6000 mm
Max Digging Depth
4150 mm
6000 mm
Max Vertical Wall Digging Depth
3200 mm
5,980 mm
Max Vertical Wall Digging Depth
3200 mm
5,980 mm
Max Reach at Ground Level
6190 mm
9875 mm
Max Reach at Ground Level
6190 mm
9875 mm
Max Dumping Height
5179 mm
6,475 mm
Max Dumping Height
5179 mm
6,475 mm
Max Cutting Height
7260 mm
9000 mm
Max Cutting Height
7260 mm
9000 mm
Boom Length
3.700 m
5.700 m
Boom Length
3.700 m
5.700 m
Arm Length
1670 mm
2,900 mm
Arm Length
1670 mm
2,900 mm
Bucket Breakout Force
51 kN
150 kN
Bucket Breakout Force
51 kN
150 kN
Arm Tear-out Force
39 kN
112 kN
Arm Tear-out Force
39 kN
112 kN
Capacities
Fuel Tank Capacity
4.8 litres
400 litres
Fuel Tank Capacity
4.8 litres
400 litres
Hydraulic Tank Capacity
12 litres
132 litres
Hydraulic Tank Capacity
12 litres
132 litres
Cooling System Capacity
35 litres
30.7 litres
Cooling System Capacity
35 litres
30.7 litres
Engine Oil Capacity
22 litres
23.1 litres
Engine Oil Capacity
22 litres
23.1 litres
Swing Drive Oil Capacity
1,5 litres
6.5 litres
Swing Drive Oil Capacity
1,5 litres
6.5 litres
Final Drive Gear Oil Capacity
5 litres
5 litres
Final Drive Gear Oil Capacity
5 litres
5 litres
Under Carriage
Track Shoe Width
450 mm
600 mm
Track Shoe Width
450 mm
600 mm
Track Gauge
1750 mm
2380 mm
Track Gauge
1750 mm
2380 mm
Track Length on Ground
2130 mm
3655 mm
Track Length on Ground
2130 mm
3655 mm
Ground Clearance
360 mm
440 mm
Ground Clearance
360 mm
440 mm
Tail Swing Radius
1750 mm
2800 mm
Tail Swing Radius
1750 mm
2800 mm
Undercarriage Type
Tracked undercarriage with lubricated rollers, idlers, track adjusters & triple‑grouser shoes — typical crawler system with shock‑absorbing spring track adjusters.
Steel crawler undercarriage
Undercarriage Type
Tracked undercarriage with lubricated rollers, idlers, track adjusters & triple‑grouser shoes — typical crawler system with shock‑absorbing spring track adjusters.
Steel crawler undercarriage
Steering & Brakes
Overall Length
6080 mm
9,705 mm
Overall Length
6080 mm
9,705 mm
Overall Width
2200 mm
2,980 mm
Overall Width
2200 mm
2,980 mm
Overall Height
2640 mm
3045 mm
Overall Height
2640 mm
3045 mm
Cab Height
2640 mm
3,045 mm
Cab Height
2640 mm
3,045 mm
Boom Height
4.50 m
3.500 m
Boom Height
4.50 m
3.500 m
Track Width
600 mm
2380 mm
Track Width
600 mm
2380 mm
Performances
Travel Speed
4.8 km/h
5.5 km/h
Travel Speed
4.8 km/h
5.5 km/h
Swing Speed
12 rpm
12 rpm
Swing Speed
12 rpm
12 rpm
Gradeability
70 %
70 %
Gradeability
70 %
70 %
Drawbar Pull
5900 kN
210 kN
Drawbar Pull
5900 kN
210 kN
Bucket And Attachments
Bucket Capacity
0.7 Cu.m
1.68 Cu.m
Bucket Capacity
0.7 Cu.m
1.68 Cu.m
Bucket Options
GP, HD, other variants possible
GP, HD, rock, specialized buckets (market dependent)
Bucket Options
GP, HD, other variants possible
GP, HD, rock, specialized buckets (market dependent)
Attachment Compatibility
Breaker, grapple, auger (optional)
Breaker, thumb, auger, ripper, quick-coupler
Attachment Compatibility
Breaker, grapple, auger (optional)
Breaker, thumb, auger, ripper, quick-coupler
Cabin And Controls
Cabin AC
Yes
Yes
Cabin AC
Yes
Yes
Display Type
LCD monitor with diagnostics (smart features)
Large LCD multi-information monitor
Display Type
LCD monitor with diagnostics (smart features)
Large LCD multi-information monitor
Joystick Controls
Yes
Yes
Joystick Controls
Yes
Yes
Seat Type
Adjustable seat
Adjustable suspension seat
Seat Type
Adjustable seat
Adjustable suspension seat
Noise Level
74 dB(A)
75 dB(A)
Noise Level
74 dB(A)
75 dB(A)
Safety Features
-
-
Safety Features
-
-
Electrical System
Battery
12 V
24 V
Battery
12 V
24 V
Alternator Output
80 A
60 A
Alternator Output
80 A
60 A
Lighting Type
LED
Halogen
Lighting Type
LED
Halogen
Additional Features
Auto Idle
Yes
Yes
Auto Idle
Yes
Yes
Eco Mode
Yes
Yes
Eco Mode
Yes
Yes
Telematics
Yes
Yes
Telematics
Yes
Yes
Diagnostic System
Yes
Yes
Diagnostic System
Yes
Yes
HYUNDAI 85A SMART
Pros
- Strong Fuel Efficiency & Low Operating Cost
- Reliable Performance & Resale Value
- Comfortable Operator Experience
Komatsu PC210 LC
Pros
- Performance & Productivity
- Durability & Build Quality
- Operator Comfort & Features
