Compare Excavators. Choose Smarter.
CAT 305. 5E2 VS Kobelco SK210 LC-8 Comparison

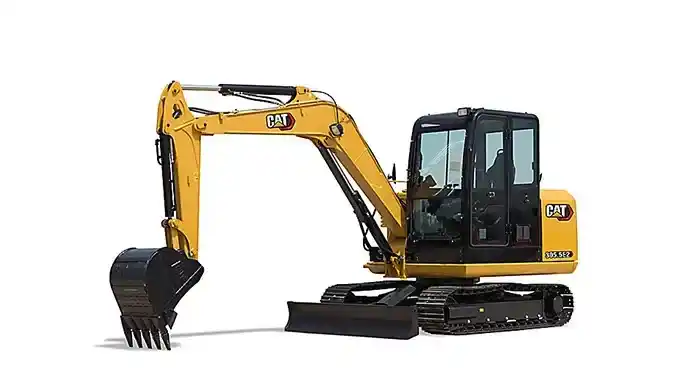

CAT 305. 5E2
₹ 13 L - 19 L
VS

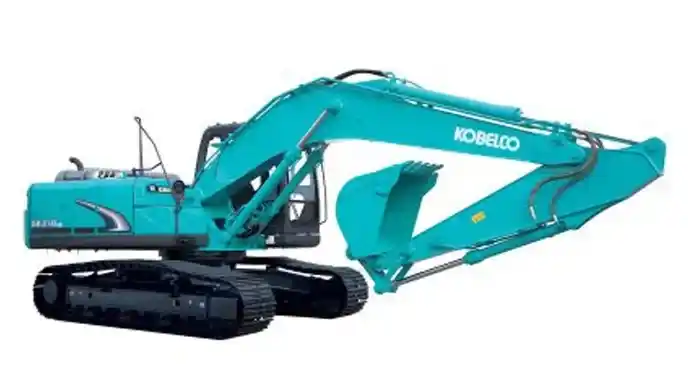

Kobelco SK210 LC-8
₹ 25 L - 35 L
CAT 305. 5E2
₹13L
Kobelco SK210 LC-8
₹25L
Compare excavators helps you make an informed purchase decision.
CAT 305. 5E2
From ₹ 13 Lakh
Kobelco SK210 LC-8
From ₹ 25 Lakh
Engine
Model
Cat C2.4 DI
Kobelco SK210 LC-8
Model
Cat C2.4 DI
Kobelco SK210 LC-8
Gross Power
34.1 kw
121 kw
Gross Power
34.1 kw
121 kw
Net Power
31.1 kw
113 kw
Net Power
31.1 kw
113 kw
Engine Power
41.70 HP
152 HP
Engine Power
41.70 HP
152 HP
Engine Displacement
2400 cc
5100 cc
Engine Displacement
2400 cc
5100 cc
Number Of Cylinders
4 Nos
4 Nos
Number Of Cylinders
4 Nos
4 Nos
Rated RPM
2400 rpm
2000 rpm
Rated RPM
2400 rpm
2000 rpm
Emission Standard
BS IV
BS III
Emission Standard
BS IV
BS III
Max Torque
300 Nm
572 Nm
Max Torque
300 Nm
572 Nm
Fuel Type
Diesel
Diesel
Fuel Type
Diesel
Diesel
Operating Weight
Operating Weight
5400 kg
21900 kg
Operating Weight
5400 kg
21900 kg
Machine Weight
5400 kg
20600 kg
Machine Weight
5400 kg
20600 kg
Counter Weight
1265 kg
9500 kg
Counter Weight
1265 kg
9500 kg
Ground Pressure
31 kg
34 kg
Ground Pressure
31 kg
34 kg
Hydraulic System
Main Pump Type
Load sensing hydraulics with variable displacement piston pump
variable displacement + 1 gear pump
Main Pump Type
Load sensing hydraulics with variable displacement piston pump
variable displacement + 1 gear pump
Maximum Hydraulic Flow
140 L/min
420 L/min
Maximum Hydraulic Flow
140 L/min
420 L/min
Maximum System Pressure
250 bar
320 bar
Maximum System Pressure
250 bar
320 bar
Hydraulic Oil Capacity
85 litres
230 litres
Hydraulic Oil Capacity
85 litres
230 litres
Auxiliary Hydraulic Flow
80 L/min
146 L/min
Auxiliary Hydraulic Flow
80 L/min
146 L/min
Working Range
Max Digging Depth
3720 mm
7000 mm
Max Digging Depth
3720 mm
7000 mm
Max Vertical Wall Digging Depth
2210 mm
6100 mm
Max Vertical Wall Digging Depth
2210 mm
6100 mm
Max Reach at Ground Level
5830 mm
9730 mm
Max Reach at Ground Level
5830 mm
9730 mm
Max Dumping Height
3835 mm
6910 mm
Max Dumping Height
3835 mm
6910 mm
Max Cutting Height
5460 mm
9750 mm
Max Cutting Height
5460 mm
9750 mm
Boom Length
3.200 m
5.850 m
Boom Length
3.200 m
5.850 m
Arm Length
1500 mm
3045 mm
Arm Length
1500 mm
3045 mm
Bucket Breakout Force
35 kN
138 kN
Bucket Breakout Force
35 kN
138 kN
Arm Tear-out Force
27.2 kN
112 kN
Arm Tear-out Force
27.2 kN
112 kN
Capacities
Fuel Tank Capacity
78 litres
370 litres
Fuel Tank Capacity
78 litres
370 litres
Hydraulic Tank Capacity
58 litres
146 litres
Hydraulic Tank Capacity
58 litres
146 litres
Cooling System Capacity
9.8 litres
26 litres
Cooling System Capacity
9.8 litres
26 litres
Engine Oil Capacity
9.5 litres
20 litres
Engine Oil Capacity
9.5 litres
20 litres
Swing Drive Oil Capacity
10 litres
7 litres
Swing Drive Oil Capacity
10 litres
7 litres
Final Drive Gear Oil Capacity
12 litres
5 litres
Final Drive Gear Oil Capacity
12 litres
5 litres
Under Carriage
Track Shoe Width
400 mm
600 mm
Track Shoe Width
400 mm
600 mm
Track Gauge
1550 mm
2390 mm
Track Gauge
1550 mm
2390 mm
Track Length on Ground
2440 mm
3660 mm
Track Length on Ground
2440 mm
3660 mm
Ground Clearance
628 mm
450 mm
Ground Clearance
628 mm
450 mm
Tail Swing Radius
1580 mm
2750 mm
Tail Swing Radius
1580 mm
2750 mm
Undercarriage Type
Sealed and lubricated track undercarriage with rubber tracks
Tracked/Crawler Ubdercarraige
Undercarriage Type
Sealed and lubricated track undercarriage with rubber tracks
Tracked/Crawler Ubdercarraige
Steering & Brakes
Overall Length
5765 mm
9450 mm
Overall Length
5765 mm
9450 mm
Overall Width
1950 mm
2990 mm
Overall Width
1950 mm
2990 mm
Overall Height
2540 mm
3030 mm
Overall Height
2540 mm
3030 mm
Cab Height
2540 mm
3030 mm
Cab Height
2540 mm
3030 mm
Boom Height
2.540 m
3.102 m
Boom Height
2.540 m
3.102 m
Track Width
400 mm
600 mm
Track Width
400 mm
600 mm
Performances
Travel Speed
4.3 km/h
6 km/h
Travel Speed
4.3 km/h
6 km/h
Swing Speed
10.5 rpm
12.5 rpm
Swing Speed
10.5 rpm
12.5 rpm
Gradeability
25 %
70 %
Gradeability
25 %
70 %
Drawbar Pull
40.2 kN
229 kN
Drawbar Pull
40.2 kN
229 kN
Bucket And Attachments
Bucket Capacity
0.22 Cu.m
1.05 Cu.m
Bucket Capacity
0.22 Cu.m
1.05 Cu.m
Bucket Options
0.22 - 0.24
0.9 - 1.4
Bucket Options
0.22 - 0.24
0.9 - 1.4
Attachment Compatibility
Hydraulic hammer, auger, ripper (via aux lines)
Standard hydraulic quick-coupler systems
Attachment Compatibility
Hydraulic hammer, auger, ripper (via aux lines)
Standard hydraulic quick-coupler systems
Cabin And Controls
Cabin AC
No
Yes
Cabin AC
No
Yes
Display Type
Standard operator info panel
LCD multi-function display
Display Type
Standard operator info panel
LCD multi-function display
Joystick Controls
Yes
Yes
Joystick Controls
Yes
Yes
Seat Type
Mechanical suspension seat
Suspension seat
Seat Type
Mechanical suspension seat
Suspension seat
Noise Level
76 dB(A)
76 dB(A)
Noise Level
76 dB(A)
76 dB(A)
Safety Features
-
-
Safety Features
-
-
Electrical System
Battery
12 V
24 V
Battery
12 V
24 V
Alternator Output
50 A
50 A
Alternator Output
50 A
50 A
Lighting Type
LED
Halogen
Lighting Type
LED
Halogen
Additional Features
Auto Idle
Yes
Yes
Auto Idle
Yes
Yes
Eco Mode
Yes
Yes
Eco Mode
Yes
Yes
Telematics
Yes
Yes
Telematics
Yes
Yes
Diagnostic System
Yes
Yes
Diagnostic System
Yes
Yes
CAT 305. 5E2
Pros
- Strong hydraulic performance & digging forces: Excellent digging and stick forces for a 5‑ton mini.
- Load‑sensing hydraulics: Smooth, responsive controls and efficient power delivery
- Durable CAT design: Heavy‑duty components and proven undercarriage.
Kobelco SK210 LC-8
Pros
- Excellent balance between power and weight for medium earthmoving tasks.
- Hino diesel engines are known for durability and serviceability globally.
- Suitable for foundation work, trenching, site prep, and loader work without needing larger excavators.
