Compare Backhoe Loader. Choose Smarter.
PRL 4CX VS CASE 770 Comparison

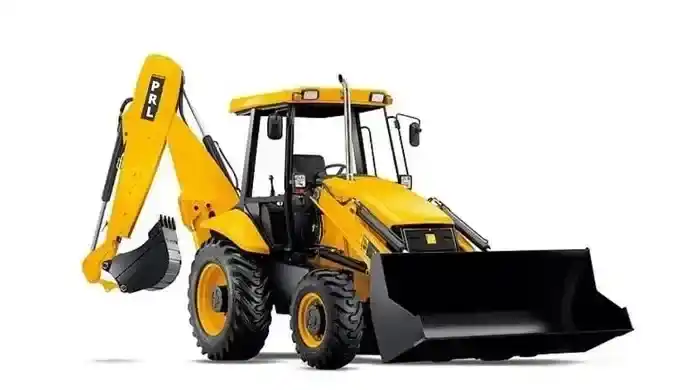

PRL 4CX
₹ 32 L - 34.99 L
VS
CASE 770
₹ 30 L - 32 L
Compare backhoe loader helps you make an informed purchase decision.
PRL 4CX
From ₹ 32 Lakh
CASE 770
From ₹ 30 Lakh
Engine
Model
4CX
4R1040TC BS-III
Model
4CX
4R1040TC BS-III
Engine Displacement
4400 cc
4160 cc
Engine Displacement
4400 cc
4160 cc
Engine Power
97 HP
76 HP
Engine Power
97 HP
76 HP
Maximum Torque
430 Nm
300 Nm
Maximum Torque
430 Nm
300 Nm
Fuel Type
Diesel
Diesel
Fuel Type
Diesel
Diesel
Transmission Type
4-speed PowerShift
Power Shuttle Synchromesh Transmission
Transmission Type
4-speed PowerShift
Power Shuttle Synchromesh Transmission
Overall Dimension & Weight
Max Operating Weight
8359 kg
7500 kg
Max Operating Weight
8359 kg
7500 kg
Transport Length
5900 mm
5887 mm
Transport Length
5900 mm
5887 mm
Width Over Stabilizer/Bucket
2360 mm
2270 mm
Width Over Stabilizer/Bucket
2360 mm
2270 mm
Wheel Base
-
-
Wheel Base
-
-
Minimum Ground Clearance
400 mm
380 mm
Minimum Ground Clearance
400 mm
380 mm
Height Of Top Of Cabin
3650 mm
3720 mm
Height Of Top Of Cabin
3650 mm
3720 mm
Loader General
Dump Height
2690 mm
3550 mm
Dump Height
2690 mm
3550 mm
Max Pay Load
4200 kg
1760 kg
Max Pay Load
4200 kg
1760 kg
Load Over Height
2900 mm
3323 mm
Load Over Height
2900 mm
3323 mm
Dump Angle
45 degree
43 degree
Dump Angle
45 degree
43 degree
Hinge Pin Height
3050 mm
3323 mm
Hinge Pin Height
3050 mm
3323 mm
Loader Arm Breakout Force
4500 kgf
5290 kgf
Loader Arm Breakout Force
4500 kgf
5290 kgf
Max Reach At Full Height
1200 mm
2357 mm
Max Reach At Full Height
1200 mm
2357 mm
Loader Bucket Capacity
2.6 Cu.m
1 Cu.m
Loader Bucket Capacity
2.6 Cu.m
1 Cu.m
Bucket Breakout Force
4600 kgf
5093 kgf
Bucket Breakout Force
4600 kgf
5093 kgf
Backhoe
Max Dig Depth
2690 mm
4335 mm
Max Dig Depth
2690 mm
4335 mm
Max Load Over Height
4000 mm
4278 mm
Max Load Over Height
4000 mm
4278 mm
Max Working Height
5200 mm
4278 mm
Max Working Height
5200 mm
4278 mm
Backhoe Bucket Capacity
1 Cu.m
0.2 Cu.m
Backhoe Bucket Capacity
1 Cu.m
0.2 Cu.m
Bucket Rotation
180 mm
204 mm
Bucket Rotation
180 mm
204 mm
Dipper Tear Out Force
3300 kgf
3500 kgf
Dipper Tear Out Force
3300 kgf
3500 kgf
Max Lift Capacity
4638 kg
1315 kg
Max Lift Capacity
4638 kg
1315 kg
Hydraulic System
Pump Type
Gear/Variable displacement
Gear Pump
Pump Type
Gear/Variable displacement
Gear Pump
Pump Flow
130 Lpm
121 Lpm
Pump Flow
130 Lpm
121 Lpm
System Pressure
210
190
System Pressure
210
190
Hydraulic Oil
180 Ltr
142 Ltr
Hydraulic Oil
180 Ltr
142 Ltr
Service Capacities
Engine Oil
11 Ltr
9.5 Ltr
Engine Oil
11 Ltr
9.5 Ltr
Rear Axle Oil
10 Ltr
22 Ltr
Rear Axle Oil
10 Ltr
22 Ltr
Transmission Oil
15 Ltr
16 Ltr
Transmission Oil
15 Ltr
16 Ltr
Hydraulic Oil
160 Ltr
142 Ltr
Hydraulic Oil
160 Ltr
142 Ltr
Fuel Tank
135 Ltr
122 Ltr
Fuel Tank
135 Ltr
122 Ltr
Coolant Oil
20 Ltr
18 Ltr
Coolant Oil
20 Ltr
18 Ltr
Steering & Brakes
Steering Type
Hydrostatic / Power steering
Hydraulic actuation with independent Hydraulic Circuit
Steering Type
Hydrostatic / Power steering
Hydraulic actuation with independent Hydraulic Circuit
Turning Circle Diameter
7000 mm
5600 mm
Turning Circle Diameter
7000 mm
5600 mm
System Pressure
210
190
System Pressure
210
190
Service Brake Type
Oil-immersed multi-disc
Oil immersed wet disc brakes on rear wheels hydraulically actuated
Service Brake Type
Oil-immersed multi-disc
Oil immersed wet disc brakes on rear wheels hydraulically actuated
Parking Brakes
Mechanical / Hand
Hydraulic multi-disc parking brake integrated with the rear axle.
Parking Brakes
Mechanical / Hand
Hydraulic multi-disc parking brake integrated with the rear axle.
Tyres & Axle
Standard Front Type
12.5/80-18
16.9X28
Standard Front Type
12.5/80-18
16.9X28
Standard Rear Type
19.5L-24
16.9X28
Standard Rear Type
19.5L-24
16.9X28
Rear Axle Description
Heavy-duty, differential lock
Heavy-duty, fully floating rear axle with hydraulic multi-disc brakes
Rear Axle Description
Heavy-duty, differential lock
Heavy-duty, fully floating rear axle with hydraulic multi-disc brakes
Front Axle Description
Oscillating, load-sensing
Rigid front axle with pendulum/oscillating design, allowing better traction on uneven terrain.
Front Axle Description
Oscillating, load-sensing
Rigid front axle with pendulum/oscillating design, allowing better traction on uneven terrain.
Electrical & General
Battery Voltage
12 V
12 V
Battery Voltage
12 V
12 V
Max Forward Speed
38 Km/h
34 Km/h
Max Forward Speed
38 Km/h
34 Km/h
Max Reverse Speed
22 Km/h
34 Km/h
Max Reverse Speed
22 Km/h
34 Km/h
PRL 4CX
Pros
- Works as both loader + excavator in one machine (reduces equipment need).
- Strong engine with good torque for digging and lifting
- Spacious cab with ergonomic controls, good visibility. (JCB reputation)
CASE 770
Pros
- Robust engine — powered by a turbocharged Ashok Leyland diesel engine (~74 HP) that delivers reliable performance for general tasks.
- Competitive pricing (~₹25–27 Lakhs) compared to newer, emission‑compliant variants or competitors, offering good value for budget‑oriented buyers.
- Solid reliability and durability — robust front axles and structural design help the machine handle rough terrains.
