Compare Backhoe Loader. Choose Smarter.
Manitou 860SX VS JCB 2DX Comparison

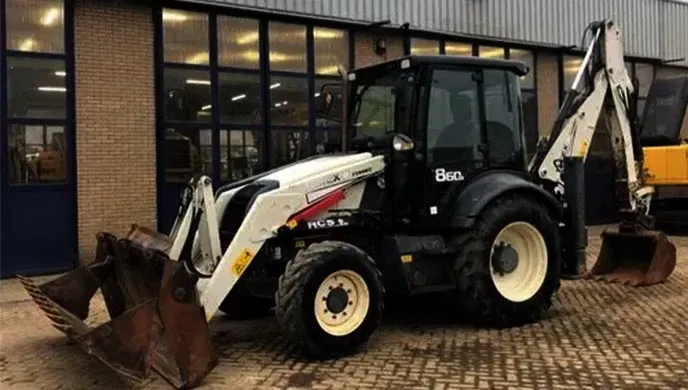

Manitou 860SX
₹ 22 L - 23.96 L
VS
JCB 2DX
₹ 18 L - 20 L
Compare backhoe loader helps you make an informed purchase decision.
Manitou 860SX
From ₹ 22 Lakh
JCB 2DX
From ₹ 18 Lakh
Engine
Model
1104D-44T
BSIII diesel engine
Model
1104D-44T
BSIII diesel engine
Engine Displacement
4400 cc
3200 cc
Engine Displacement
4400 cc
3200 cc
Engine Power
74.5 HP
49 HP
Engine Power
74.5 HP
49 HP
Maximum Torque
392 Nm
203 Nm
Maximum Torque
392 Nm
203 Nm
Fuel Type
Diesel
Diesel
Fuel Type
Diesel
Diesel
Transmission Type
4 Forward + 4 Reverse Synchromesh Shuttle Transmission
JCB Synchro‑shuttle transmission
Transmission Type
4 Forward + 4 Reverse Synchromesh Shuttle Transmission
JCB Synchro‑shuttle transmission
Overall Dimension & Weight
Max Operating Weight
7370 kg
5220 kg
Max Operating Weight
7370 kg
5220 kg
Transport Length
5900 mm
5500 mm
Transport Length
5900 mm
5500 mm
Width Over Stabilizer/Bucket
2350 mm
1912 mm
Width Over Stabilizer/Bucket
2350 mm
1912 mm
Wheel Base
-
-
Wheel Base
-
-
Minimum Ground Clearance
360 mm
330 mm
Minimum Ground Clearance
360 mm
330 mm
Height Of Top Of Cabin
2950 mm
2070 mm
Height Of Top Of Cabin
2950 mm
2070 mm
Loader General
Dump Height
2662 mm
2300 mm
Dump Height
2662 mm
2300 mm
Max Pay Load
2600 kg
800 kg
Max Pay Load
2600 kg
800 kg
Load Over Height
3800 mm
2740 mm
Load Over Height
3800 mm
2740 mm
Dump Angle
45 degree
44 degree
Dump Angle
45 degree
44 degree
Hinge Pin Height
3200 mm
3000 mm
Hinge Pin Height
3200 mm
3000 mm
Loader Arm Breakout Force
5260 kgf
1834 kgf
Loader Arm Breakout Force
5260 kgf
1834 kgf
Max Reach At Full Height
1282 mm
1120 mm
Max Reach At Full Height
1282 mm
1120 mm
Loader Bucket Capacity
2.6 Cu.m
0.6 Cu.m
Loader Bucket Capacity
2.6 Cu.m
0.6 Cu.m
Bucket Breakout Force
4800 kgf
3370 kgf
Bucket Breakout Force
4800 kgf
3370 kgf
Backhoe
Max Dig Depth
123 mm
3020 mm
Max Dig Depth
123 mm
3020 mm
Max Load Over Height
3500 mm
2830 mm
Max Load Over Height
3500 mm
2830 mm
Max Working Height
6000 mm
3880 mm
Max Working Height
6000 mm
3880 mm
Backhoe Bucket Capacity
1 Cu.m
0.18 Cu.m
Backhoe Bucket Capacity
1 Cu.m
0.18 Cu.m
Bucket Rotation
180 mm
205 mm
Bucket Rotation
180 mm
205 mm
Dipper Tear Out Force
3800 kgf
1750 kgf
Dipper Tear Out Force
3800 kgf
1750 kgf
Max Lift Capacity
1564 kg
1490 kg
Max Lift Capacity
1564 kg
1490 kg
Hydraulic System
Pump Type
Twin Gear Pumps
Gear, double pump
Pump Type
Twin Gear Pumps
Gear, double pump
Pump Flow
160 Lpm
70.4 Lpm
Pump Flow
160 Lpm
70.4 Lpm
System Pressure
210
125
System Pressure
210
125
Hydraulic Oil
143 Ltr
60 Ltr
Hydraulic Oil
143 Ltr
60 Ltr
Service Capacities
Engine Oil
12 Ltr
8 Ltr
Engine Oil
12 Ltr
8 Ltr
Rear Axle Oil
15 Ltr
10 Ltr
Rear Axle Oil
15 Ltr
10 Ltr
Transmission Oil
18 Ltr
16 Ltr
Transmission Oil
18 Ltr
16 Ltr
Hydraulic Oil
143 Ltr
60 Ltr
Hydraulic Oil
143 Ltr
60 Ltr
Fuel Tank
130 Ltr
60 Ltr
Fuel Tank
130 Ltr
60 Ltr
Coolant Oil
14 Ltr
13.5 Ltr
Coolant Oil
14 Ltr
13.5 Ltr
Steering & Brakes
Steering Type
Hydrostatic Power Steering
Full power, front wheel hydrostatic power steering with power track road and manual capability in the event of engine or hydraulic power failure.
Steering Type
Hydrostatic Power Steering
Full power, front wheel hydrostatic power steering with power track road and manual capability in the event of engine or hydraulic power failure.
Turning Circle Diameter
8200 mm
10300 mm
Turning Circle Diameter
8200 mm
10300 mm
System Pressure
210
125
System Pressure
210
125
Service Brake Type
Oil-immersed Multi-disc
Hydraulically actuated, dual line, self-adjusting (compensated), oil immersed, multi-disc type on the rear axle, well protected from dirt, water, etc. Operated through independent pedals linked together
Service Brake Type
Oil-immersed Multi-disc
Hydraulically actuated, dual line, self-adjusting (compensated), oil immersed, multi-disc type on the rear axle, well protected from dirt, water, etc. Operated through independent pedals linked together
Parking Brakes
Hand-operated Mechanical
Hand‑operated disc brake located on the rear axle input disc
Parking Brakes
Hand-operated Mechanical
Hand‑operated disc brake located on the rear axle input disc
Tyres & Axle
Standard Front Type
16/70x20
7.5 x 16 -16 PR
Standard Front Type
16/70x20
7.5 x 16 -16 PR
Standard Rear Type
18.4x26
12 x 24 - 20 PR, 14.9 x 24 - 12 PR
Standard Rear Type
18.4x26
12 x 24 - 20 PR, 14.9 x 24 - 12 PR
Rear Axle Description
Rigid Drive Axle
Drive axle rigidly mounted, incorporates JCB Max-Trac torque proportioning differential, driven by short propshaft from gear box
Rear Axle Description
Rigid Drive Axle
Drive axle rigidly mounted, incorporates JCB Max-Trac torque proportioning differential, driven by short propshaft from gear box
Front Axle Description
Steering Axle
2WD steer axle, centrally pivoted, with oscillation angle of 16°.
Front Axle Description
Steering Axle
2WD steer axle, centrally pivoted, with oscillation angle of 16°.
Electrical & General
Battery Voltage
12 V
12 V
Battery Voltage
12 V
12 V
Max Forward Speed
32 Km/h
28 Km/h
Max Forward Speed
32 Km/h
28 Km/h
Max Reverse Speed
10 Km/h
7 Km/h
Max Reverse Speed
10 Km/h
7 Km/h
Manitou 860SX
Pros
- The ~100 hp Perkins engine provides ample power and torque for digging, loading, and driving, making the 860SX capable across many jobsite tasks.
- With a 1 m³ bucket and good breakout forces (~5,260 kgf), it balances digging and loading duties efficiently.
- Twin gear pumps with combined ~160 L/min flow and ~225 bar pressure support smooth simultaneous functions and responsiveness.
JCB 2DX
Pros
- Ideal for urban construction, tight job sites, and confined spaces due to its smaller size and lighter weight
- Generally more fuel‑efficient and easier to transport than larger backhoe models
- Suitable for digging, trenching, loading, and material handling for smaller jobs or regular maintenance work
