Compare Backhoe Loader. Choose Smarter.
ACE Phantom 2WD VS JB Industries JBI-06 Comparison

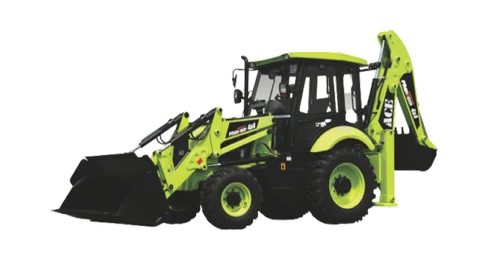

ACE Phantom 2WD
₹ 32 L - 34.99 L
VS
JB Industries JBI-06
₹ 22 L - 23.99 L
Compare backhoe loader helps you make an informed purchase decision.
ACE Phantom 2WD
From ₹ 32 Lakh
JB Industries JBI-06
From ₹ 22 Lakh
Engine
Model
KIRLOSKAR 4R1190NA1
JB Industries JBI-06
Model
KIRLOSKAR 4R1190NA1
JB Industries JBI-06
Engine Displacement
4100 cc
2900 cc
Engine Displacement
4100 cc
2900 cc
Engine Power
74 HP
49 HP
Engine Power
74 HP
49 HP
Maximum Torque
300 Nm
210 Nm
Maximum Torque
300 Nm
210 Nm
Fuel Type
Diesel
Diesel
Fuel Type
Diesel
Diesel
Transmission Type
Synchro-shuttle transmission with torque converter & synchronized gearbox
Manual Synchromesh (4F + 4R)
Transmission Type
Synchro-shuttle transmission with torque converter & synchronized gearbox
Manual Synchromesh (4F + 4R)
Overall Dimension & Weight
Max Operating Weight
8040 kg
8000 kg
Max Operating Weight
8040 kg
8000 kg
Transport Length
6200 mm
6100 mm
Transport Length
6200 mm
6100 mm
Width Over Stabilizer/Bucket
2500 mm
2350 mm
Width Over Stabilizer/Bucket
2500 mm
2350 mm
Wheel Base
-
-
Wheel Base
-
-
Minimum Ground Clearance
350 mm
350 mm
Minimum Ground Clearance
350 mm
350 mm
Height Of Top Of Cabin
2900 mm
2850 mm
Height Of Top Of Cabin
2900 mm
2850 mm
Loader General
Dump Height
2760 mm
2900 mm
Dump Height
2760 mm
2900 mm
Max Pay Load
1900 kg
1500 kg
Max Pay Load
1900 kg
1500 kg
Load Over Height
3340 mm
3450 mm
Load Over Height
3340 mm
3450 mm
Dump Angle
45 degree
45 degree
Dump Angle
45 degree
45 degree
Hinge Pin Height
3630 mm
3600 mm
Hinge Pin Height
3630 mm
3600 mm
Loader Arm Breakout Force
4950 kgf
4200 kgf
Loader Arm Breakout Force
4950 kgf
4200 kgf
Max Reach At Full Height
1220 mm
2930 mm
Max Reach At Full Height
1220 mm
2930 mm
Loader Bucket Capacity
1 Cu.m
1 Cu.m
Loader Bucket Capacity
1 Cu.m
1 Cu.m
Bucket Breakout Force
4000 kgf
4500 kgf
Bucket Breakout Force
4000 kgf
4500 kgf
Backhoe
Max Dig Depth
4250 mm
4600 mm
Max Dig Depth
4250 mm
4600 mm
Max Load Over Height
3790 mm
4200 mm
Max Load Over Height
3790 mm
4200 mm
Max Working Height
5470 mm
6100 mm
Max Working Height
5470 mm
6100 mm
Backhoe Bucket Capacity
0.24 Cu.m
0.6 Cu.m
Backhoe Bucket Capacity
0.24 Cu.m
0.6 Cu.m
Bucket Rotation
175 mm
180 mm
Bucket Rotation
175 mm
180 mm
Dipper Tear Out Force
4000 kgf
3000 kgf
Dipper Tear Out Force
4000 kgf
3000 kgf
Max Lift Capacity
1900 kg
1500 kg
Max Lift Capacity
1900 kg
1500 kg
Hydraulic System
Pump Type
Gear Pump
Gear Pump
Pump Type
Gear Pump
Gear Pump
Pump Flow
118 Lpm
100 Lpm
Pump Flow
118 Lpm
100 Lpm
System Pressure
210
210
System Pressure
210
210
Hydraulic Oil
80 Ltr
75 Ltr
Hydraulic Oil
80 Ltr
75 Ltr
Service Capacities
Engine Oil
11.5 Ltr
10 Ltr
Engine Oil
11.5 Ltr
10 Ltr
Rear Axle Oil
3 Ltr
15 Ltr
Rear Axle Oil
3 Ltr
15 Ltr
Transmission Oil
17 Ltr
14 Ltr
Transmission Oil
17 Ltr
14 Ltr
Hydraulic Oil
80 Ltr
75 Ltr
Hydraulic Oil
80 Ltr
75 Ltr
Fuel Tank
150 Ltr
120 Ltr
Fuel Tank
150 Ltr
120 Ltr
Coolant Oil
14 Ltr
14 Ltr
Coolant Oil
14 Ltr
14 Ltr
Steering & Brakes
Steering Type
Hydrostatic steering for reliability and better control
Hydrostatic Power Steering
Steering Type
Hydrostatic steering for reliability and better control
Hydrostatic Power Steering
Turning Circle Diameter
3500 mm
8200 mm
Turning Circle Diameter
3500 mm
8200 mm
System Pressure
210
210
System Pressure
210
210
Service Brake Type
Hydraulically Actuated Disc Brakes
Oil-immersed Multi-Disc Brakes
Service Brake Type
Hydraulically Actuated Disc Brakes
Oil-immersed Multi-Disc Brakes
Parking Brakes
Mechanically Actuated Disc Brakes For Parking
Mechanical, Hand Operated
Parking Brakes
Mechanically Actuated Disc Brakes For Parking
Mechanical, Hand Operated
Tyres & Axle
Standard Front Type
9.00 x 16 – 16 PR
12.5 / 80 – 18, 12 PR
Standard Front Type
9.00 x 16 – 16 PR
12.5 / 80 – 18, 12 PR
Standard Rear Type
16.90 - 28 - 12 PR
16.9 × 28, 12 PR
Standard Rear Type
16.90 - 28 - 12 PR
16.9 × 28, 12 PR
Rear Axle Description
Rigid axle with CARRARO planetary drive
Rigid Drive Axle
Rear Axle Description
Rigid axle with CARRARO planetary drive
Rigid Drive Axle
Front Axle Description
Drive & Steer Axle, centrally pivoted
Steering Axle (2WD)
Front Axle Description
Drive & Steer Axle, centrally pivoted
Steering Axle (2WD)
Electrical & General
Battery Voltage
12 V
12 V
Battery Voltage
12 V
12 V
Max Forward Speed
40 Km/h
32 Km/h
Max Forward Speed
40 Km/h
32 Km/h
Max Reverse Speed
40 Km/h
10 Km/h
Max Reverse Speed
40 Km/h
10 Km/h
ACE Phantom 2WD
Pros
- Higher engine power (≈76 HP) compared to many basic backhoe loaders, offering better performance in digging and loading.
- Higher top speed (~40 km/h) helpful for transit between sites.
- Large fuel tank (150 L) enables longer operating hours without frequent refueling.
JB Industries JBI-06
Pros
- Positioned as a cost-effective loader option in the smaller HP class (~49 HP), which can be attractive for budget-conscious buyers.
- Standard 1.0 m³ bucket and typical excavation depth comparable to small backhoe loaders.
- Built by a local Indian manufacturer, potentially easier access to the maker for small fleets or agricultural contractors.
