Compare Backhoe Loader. Choose Smarter.
ACE AX-124 VS Mahindra Earthmaster SX90 4WD Comparison

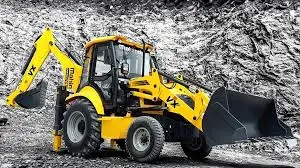

ACE AX-124
₹ 23 L - 31 L
VS
Mahindra Earthmaster SX90 4WD
₹ 31 L - 33 L
Compare backhoe loader helps you make an informed purchase decision.
ACE AX-124
From ₹ 23 Lakh
Mahindra Earthmaster SX90 4WD
From ₹ 31 Lakh
Engine
Model
KIRLOSKAR 4R1190NA1
4915-IA-CE V
Model
KIRLOSKAR 4R1190NA1
4915-IA-CE V
Engine Displacement
3783 cc
3532 cc
Engine Displacement
3783 cc
3532 cc
Engine Power
74 HP
91 HP
Engine Power
74 HP
91 HP
Maximum Torque
300 Nm
345 Nm
Maximum Torque
300 Nm
345 Nm
Fuel Type
Diesel
Diesel
Fuel Type
Diesel
Diesel
Transmission Type
Synchro shuttle transmission with torque converter and 4 forward + 4 reverse gears
Four Speed [4 Forward, 4 Reverse]
Transmission Type
Synchro shuttle transmission with torque converter and 4 forward + 4 reverse gears
Four Speed [4 Forward, 4 Reverse]
Overall Dimension & Weight
Max Operating Weight
8040 kg
7742 kg
Max Operating Weight
8040 kg
7742 kg
Transport Length
6200 mm
5856 mm
Transport Length
6200 mm
5856 mm
Width Over Stabilizer/Bucket
2500 mm
2404 mm
Width Over Stabilizer/Bucket
2500 mm
2404 mm
Wheel Base
-
-
Wheel Base
-
-
Minimum Ground Clearance
350 mm
500 mm
Minimum Ground Clearance
350 mm
500 mm
Height Of Top Of Cabin
2900 mm
2950 mm
Height Of Top Of Cabin
2900 mm
2950 mm
Loader General
Dump Height
2760 mm
2723 mm
Dump Height
2760 mm
2723 mm
Max Pay Load
1900 kg
1800 kg
Max Pay Load
1900 kg
1800 kg
Load Over Height
3340 mm
3277 mm
Load Over Height
3340 mm
3277 mm
Dump Angle
45 degree
44 degree
Dump Angle
45 degree
44 degree
Hinge Pin Height
3630 mm
3477 mm
Hinge Pin Height
3630 mm
3477 mm
Loader Arm Breakout Force
4950 kgf
5594 kgf
Loader Arm Breakout Force
4950 kgf
5594 kgf
Max Reach At Full Height
1220 mm
4885 mm
Max Reach At Full Height
1220 mm
4885 mm
Loader Bucket Capacity
1.1 Cu.m
1.1 Cu.m
Loader Bucket Capacity
1.1 Cu.m
1.1 Cu.m
Bucket Breakout Force
4950 kgf
6243 kgf
Bucket Breakout Force
4950 kgf
6243 kgf
Backhoe
Max Dig Depth
4250 mm
4959 mm
Max Dig Depth
4250 mm
4959 mm
Max Load Over Height
3340 mm
4302 mm
Max Load Over Height
3340 mm
4302 mm
Max Working Height
5470 mm
6403 mm
Max Working Height
5470 mm
6403 mm
Backhoe Bucket Capacity
0.24 Cu.m
0.3 Cu.m
Backhoe Bucket Capacity
0.24 Cu.m
0.3 Cu.m
Bucket Rotation
175 mm
188 mm
Bucket Rotation
175 mm
188 mm
Dipper Tear Out Force
4000 kgf
3182 kgf
Dipper Tear Out Force
4000 kgf
3182 kgf
Max Lift Capacity
1900 kg
3428 kg
Max Lift Capacity
1900 kg
3428 kg
Hydraulic System
Pump Type
variable‑displacement hydraulic pump
Fixed Displacement, Gear Pump
Pump Type
variable‑displacement hydraulic pump
Fixed Displacement, Gear Pump
Pump Flow
118 Lpm
117 Lpm
Pump Flow
118 Lpm
117 Lpm
System Pressure
210
Open Centre
System Pressure
210
Open Centre
Hydraulic Oil
80 Ltr
100 Ltr
Hydraulic Oil
80 Ltr
100 Ltr
Service Capacities
Engine Oil
11 Ltr
13.7 Ltr
Engine Oil
11 Ltr
13.7 Ltr
Rear Axle Oil
12 Ltr
17.1 Ltr
Rear Axle Oil
12 Ltr
17.1 Ltr
Transmission Oil
17 Ltr
22 Ltr
Transmission Oil
17 Ltr
22 Ltr
Hydraulic Oil
80 Ltr
100 Ltr
Hydraulic Oil
80 Ltr
100 Ltr
Fuel Tank
150 Ltr
120 Ltr
Fuel Tank
150 Ltr
120 Ltr
Coolant Oil
14 Ltr
17 Ltr
Coolant Oil
14 Ltr
17 Ltr
Steering & Brakes
Steering Type
Hydrostatic steering for reliability and better control
Front wheel hydrostatic power steering with priority function and pressure relief setting of 145 bar.
Steering Type
Hydrostatic steering for reliability and better control
Front wheel hydrostatic power steering with priority function and pressure relief setting of 145 bar.
Turning Circle Diameter
4400 mm
4490 mm
Turning Circle Diameter
4400 mm
4490 mm
System Pressure
210
Open Centre
System Pressure
210
Open Centre
Service Brake Type
Hydraulically actuated wet disc brakes at the rear wheels, operated by twin pedals
Hydraulically actuated, self adjusting, maintenance free, oil immersed multi-disc, on the rear axle, operated by independent foot pedals, joined together for normal operation
Service Brake Type
Hydraulically actuated wet disc brakes at the rear wheels, operated by twin pedals
Hydraulically actuated, self adjusting, maintenance free, oil immersed multi-disc, on the rear axle, operated by independent foot pedals, joined together for normal operation
Parking Brakes
Mechanically actuated disc brakes
Hand operated, inbuilt in the rear axle, low maintenance.
Parking Brakes
Mechanically actuated disc brakes
Hand operated, inbuilt in the rear axle, low maintenance.
Tyres & Axle
Standard Front Type
9.00 x 16 – 16 PR
12.5 / 80 X 18-12PR (IT/HD]
Standard Front Type
9.00 x 16 – 16 PR
12.5 / 80 X 18-12PR (IT/HD]
Standard Rear Type
16.90 - 28 - 12 PR
16.9 X 28 - 12PR (IT], 14 X 25 - 12PR/20PR [HD]
Standard Rear Type
16.90 - 28 - 12 PR
16.9 X 28 - 12PR (IT], 14 X 25 - 12PR/20PR [HD]
Rear Axle Description
Rigid axle with CARRARO planetary drive
Rigidly mounted drive axle, with outbound planetary final drives, driven by short drive shaft
Rear Axle Description
Rigid axle with CARRARO planetary drive
Rigidly mounted drive axle, with outbound planetary final drives, driven by short drive shaft
Front Axle Description
Rigid axle with CARRARO planetary drive
Centrally pivoted, driven unbalanced type axle, with total oscillation of 16°, with remote greasing facility for the main pin.
Front Axle Description
Rigid axle with CARRARO planetary drive
Centrally pivoted, driven unbalanced type axle, with total oscillation of 16°, with remote greasing facility for the main pin.
Electrical & General
Battery Voltage
12 V
12 V
Battery Voltage
12 V
12 V
Max Forward Speed
28 Km/h
38 Km/h
Max Forward Speed
28 Km/h
38 Km/h
Max Reverse Speed
14 Km/h
9 Km/h
Max Reverse Speed
14 Km/h
9 Km/h
ACE AX-124
Pros
- Generally lower purchase price compared to some competitors like Manitou or Caterpillar in the same class
- 74 HP Tata diesel engine provides sufficient power for most medium construction tasks.
- Loader shovel size around 1.1 m³ — often larger than some competing models.
Mahindra Earthmaster SX90 4WD
Pros
- Strong fuel efficiency & low operating costs
- Robust structure and high ground clearance suit Indian and rugged job sites.
- Backhoe and loader buckets are competitive in size and speed, offering efficient digging and material handling
