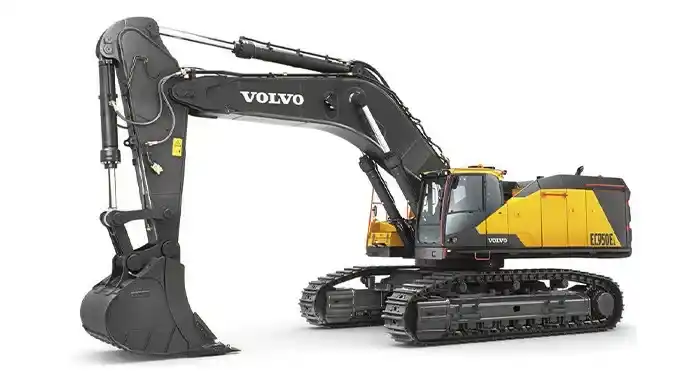

Volvo EC950E

star

5

Ex-Showroom Price

₹ 2.80 Cr - 3.50 Cr

Diesel

Diesel

91840 kg

91840 kg

8950 mm

8950 mm

Download Volvo EC950E Brochure

Download Volvo EC950E brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of Volvo EC950E

Engine Power

Engine Power

611 HP

Operating Weight

Operating Weight

91840 kg

Bucket capacity

Bucket capacity

3.9 Cu.m

Hydraulic system

Hydraulic system

515 L/min

Maximum Digging Depth

Maximum Digging Depth

8950 mm

Boom Height

Boom Height

7.25 m

About Volvo EC950E Overview

Volvo EC950E is a popular excavator in the construction vehicle industry. The max operating weight of this excavator is 91840 Kg and also has a lifting capacity of 37460 Kg. Moreover The max digging d...

Volvo EC950E Specifications & Features

Engine

Engine ModelVolvo D16E diesel engine
Gross Power450 kW
Net Power446 kW
Engine Power611 HP
Displacement16100 cc
Number of Cylinders6 Nos
Rated RPM1800 rpm
Emission StandardBS II
Max Torque2650 Nm
Fuel TypeDiesel

Operating Weights

Operating Weight91840 kg
Machine Weight89960 kg
Counterweight9652 kg
Ground Pressure122 kPa

Hydraulic System

Main Pump Typevariable‑displacement axial piston pumps
Maximum Hydraulic Flow1117 L/min
Maximum System Pressure343 bar
Hydraulic Oil Capacity900 litres
Auxiliary Hydraulic Flow413 L/min

Working Range

Maximum Digging Depth8950 mm
Maximum Vertical Wall Digging Depth5390 mm
Maximum Reach at Ground Level11950 mm
Maximum Dumping Height8090 mm
Maximum Cutting Height12410 mm
Boom Length7.250 m
Arm Length2950 mm
Bucket Breakout Force424 kN
Arm Tear-out Force408 kN

Volvo EC950E EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

6,20,620

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount2,79,00,000
Interest Amount (12 %)93,37,205
Total Amount Payable3,72,37,205

Volvo EC950E Pros and cons

like

Pros

  • Powered by a diesel Volvo D16E engine with ~450 kW / ~611 hp for heavy tasks and continuous operation.
  • Excellent breakout and tear‑out forces suited for mining/quarrying.
  • Volvo design emphasizes accessible maintenance points and dealer support worldwide, reducing downtime.
  • dislike

    Cons

  • As a 90‑ton class excavator, new pricing is typically very high and usually “price on request” — indicative of a premium tier machine.
  • Large size and weight (~89,960–91,840 kg) make it less suited for confined sites and require special logistics to transport.
  • Powerful engines and large hydraulic systems mean higher fuel use vs smaller classes.
  • Download Volvo EC950E Brochure PDF

    Download Volvo EC950E brochure online. Check out the Volvo EC950E PDF brochure at Only Heavy with all features and specifications.

    Volvo EC950E Uses

    uses

    Excavation

    uses

    Digging

    uses

    Loading

    uses

    Construction

    uses

    Material handling

    uses

    Trenching

    Volvo EC950E Loan Offers

    location

    Explore Volvo EC950E Alternatives

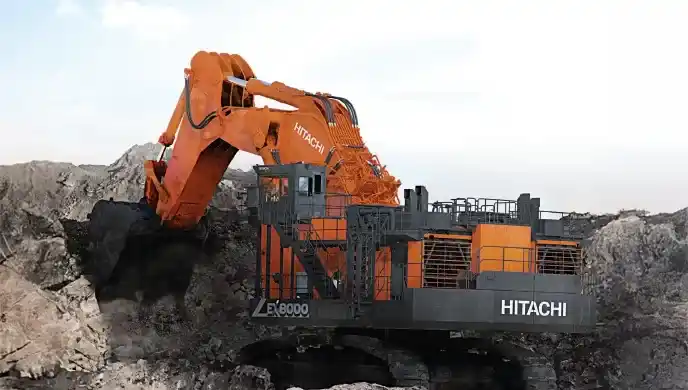

    Tata Hitachi EX 8000 7 New

    Tata Hitachi EX 8000 7

    Engine

    12000 CC

    Bucket Capacity

    40 Cu.m

    Digging Depth

    7740 mm

    Ex-showroom Price

    ₹ 3.00 Cr - 4.00 Cr

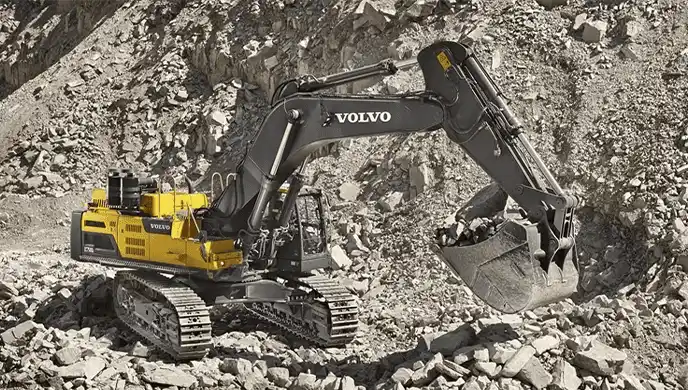

    Volvo EC750D New

    Volvo EC750D

    Engine

    16100 CC

    Bucket Capacity

    5.16 Cu.m

    Digging Depth

    7210 mm

    Ex-showroom Price

    ₹ 2.85 Cr - 3.10 Cr

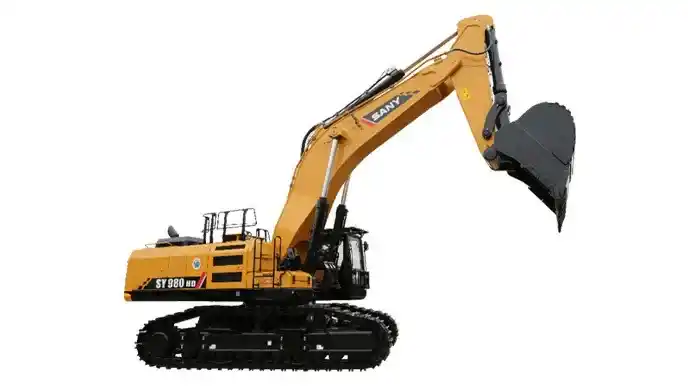

    SANY SY980C-10HDNew

    SANY SY980C-10HD

    Engine

    16400 CC

    Bucket Capacity

    6.5 Cu.m

    Digging Depth

    6740 mm

    Ex-showroom Price

    ₹ 5.00 Cr - 6.00 Cr

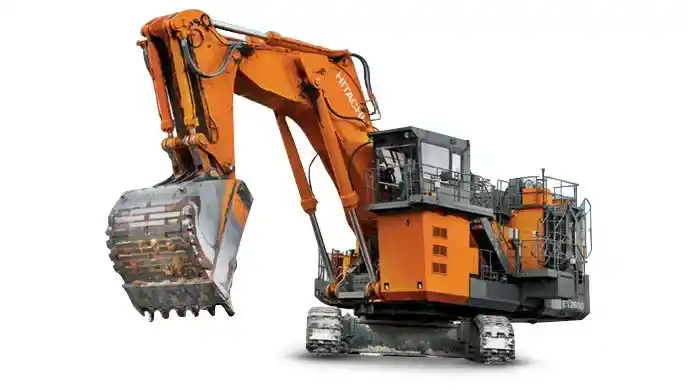

    Tata Hitachi EX 2600-6New

    Tata Hitachi EX 2600-6

    Engine

    50000 CC

    Bucket Capacity

    17 Cu.m

    Digging Depth

    3720 mm

    Ex-showroom Price

    ₹ 8.99 Cr - 10.00 Cr

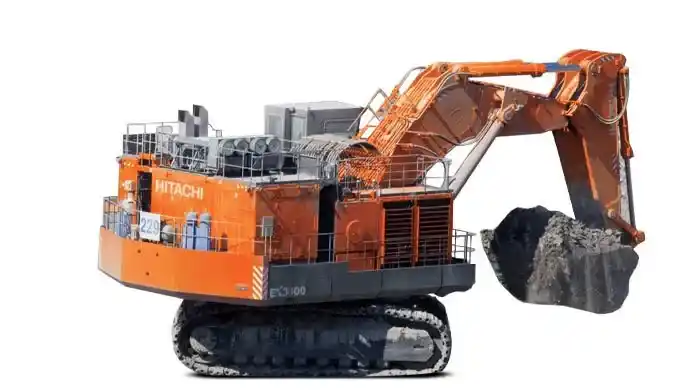

    Tata Hitachi EX 3600 New

    Tata Hitachi EX 3600

    Engine

    65400 CC

    Bucket Capacity

    22 Cu.m

    Digging Depth

    8580 mm

    Ex-showroom Price

    ₹ 7.40 Cr - 18.00 Cr

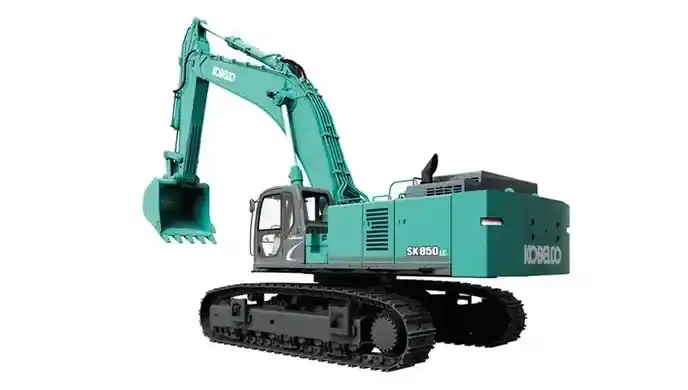

    Kobelco SK850LCNew

    Kobelco SK850LC

    Engine

    15240 CC

    Bucket Capacity

    2.3 Cu.m

    Digging Depth

    7380 mm

    Ex-showroom Price

    ₹ 3.60 Cr - 4.09 Cr

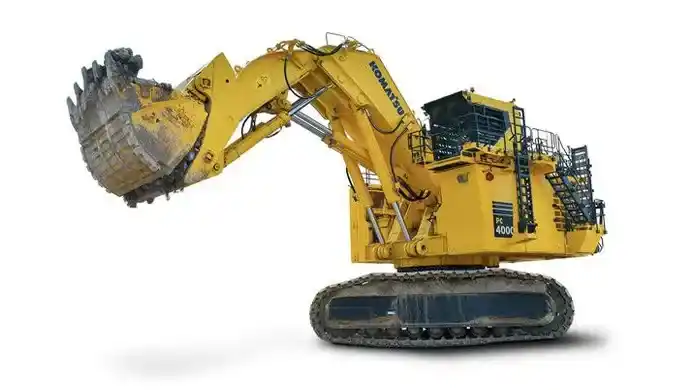

    Komatsu PC4000-11New

    Komatsu PC4000-11

    Engine

    16000 CC

    Bucket Capacity

    23 Cu.m

    Digging Depth

    8000 mm

    Ex-showroom Price

    ₹ 6.90 Cr - 9.80 Cr

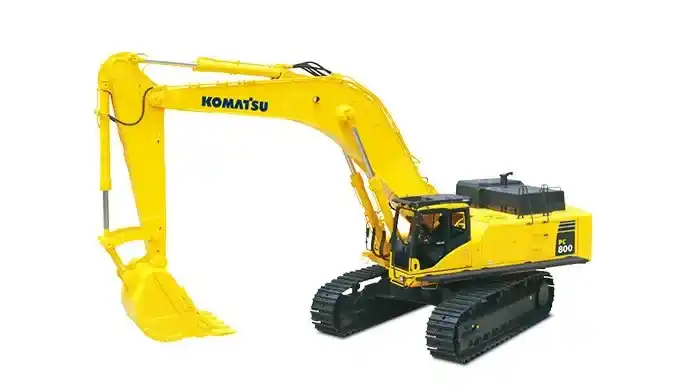

    Komatsu PC800-8RNew
