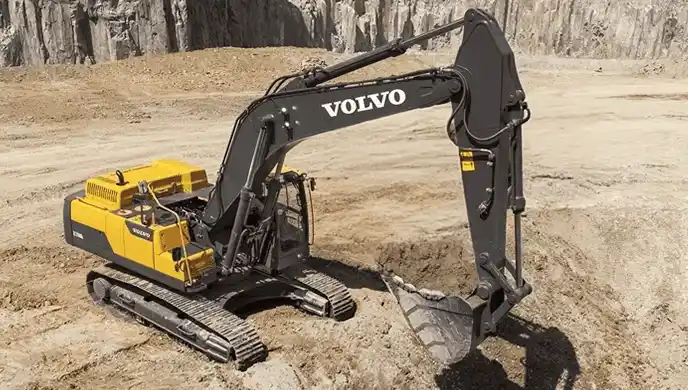

Volvo EC350D

star

5

Ex-Showroom Price

₹ 33 L - 46.99 L

Diesel

Diesel

38700 kg

38700 kg

7480 mm

7480 mm

Download Volvo EC350D Brochure

Download Volvo EC350D brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of Volvo EC350D

Engine Power

Engine Power

281 HP

Operating Weight

Operating Weight

38700 kg

Bucket capacity

Bucket capacity

2.53 Cu.m

Hydraulic system

Hydraulic system

576 L/min

Maximum Digging Depth

Maximum Digging Depth

7480 mm

Boom Height

Boom Height

6.45 m

About Volvo EC350D Overview

Volvo EC350D is a popular Excavator in the construction vehicle industry.This Volvo EC350D in India is available at a competitive price range. Volvo EC350D is equipped with a powerful engine generatin...

Volvo EC350D Specifications & Features

Engine

Engine ModelVolvo D8F / D8K six‑cylinder diesel engine
Gross Power210 kW
Net Power197 kW
Engine Power286 HP
Displacement7800 cc
Number of Cylinders6 Nos
Rated RPM1800 rpm
Emission StandardBS IV
Max Torque1340 Nm
Fuel TypeDiesel

Operating Weights

Operating Weight38700 kg
Machine Weight38700 kg
Counterweight12000 kg
Ground Pressure72 kPa

Hydraulic System

Main Pump Type2 × Variable displacement axial piston pumps
Maximum Hydraulic Flow576 L/min
Maximum System Pressure333 bar
Hydraulic Oil Capacity465 litres
Auxiliary Hydraulic Flow120 L/min

Working Range

Maximum Digging Depth7480 mm
Maximum Vertical Wall Digging Depth10132 mm
Maximum Reach at Ground Level11100 mm
Maximum Dumping Height7000 mm
Maximum Cutting Height9800 mm
Boom Length6.450 m
Arm Length3200 mm
Bucket Breakout Force177 kN
Arm Tear-out Force156 kN

Volvo EC350D EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹71,182

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount₹32,00,000
Interest Amount (12 %)₹10,70,934
Total Amount Payable₹42,70,934

Volvo EC350D Pros and cons

like

Pros

  • Strong Production Performance: Volvo’s electro‑hydraulic system and ECO mode provide good cycle times, fuel efficiency, and dig performance.
  • Durability & Support: Volvo machines are known for solid build and global service network.
  • Good Reach & Depth: ~10.17 m gain height and ~7.48 m depth suit mainstream heavy excavation tasks.
    • dislike

    Cons

  • Price Variability: New pricing unclear / wide range; used units may vary widely in condition and cost.
  • Operating Costs: As a 35‑ton class machine, fuel and maintenance can be significant compared with smaller excavators.
  • Not the Latest Controls: Older D‑series controls may not be as advanced as newer E‑series for precision grading.

    • Download Volvo EC350D Brochure PDF

    Download Volvo EC350D brochure online. Check out the Volvo EC350D PDF brochure at Only Heavy with all features and specifications.

    Volvo EC350D Uses

    uses

    Excavation

    uses

    Digging

    uses

    Loading

    uses

    Construction

    uses

    Material handling

    uses

    Trenching

    Volvo EC350D Loan Offers

    location

    Explore Volvo EC350D Alternatives

    BOBCAT E32New

    BOBCAT E32

    Engine

    1,123  CC

    Bucket Capacity

    0.6 Cu.m

    Digging Depth

    3892 mm

    Ex-showroom Price

    ₹ 55 L - 58 L

    CAT 322 New

    CAT 322

    Engine

    4760 CC

    Bucket Capacity

    1 Cu.m

    Digging Depth

    6310 mm

    Ex-showroom Price

    ₹ 45 L - 49 L

    JCB 520X LCNew

    JCB 520X LC

    Engine

    11000 CC

    Bucket Capacity

    3.4 Cu.m

    Digging Depth

    7000 mm

    Ex-showroom Price

    ₹ 45 L - 64.99 L

    Tata Hitachi EX 210LCNew

    Tata Hitachi EX 210LC

    Engine

    6494 CC

    Bucket Capacity

    1.5 Cu.m

    Digging Depth

    6600 mm

    Ex-showroom Price

    ₹ 34 L - 36 L

    Volvo EC215New

    Volvo EC215

    Engine

    5700 CC

    Bucket Capacity

    1.1 Cu.m

    Digging Depth

    6380 mm

    Ex-showroom Price

    ₹ 39 L - 40.99 L

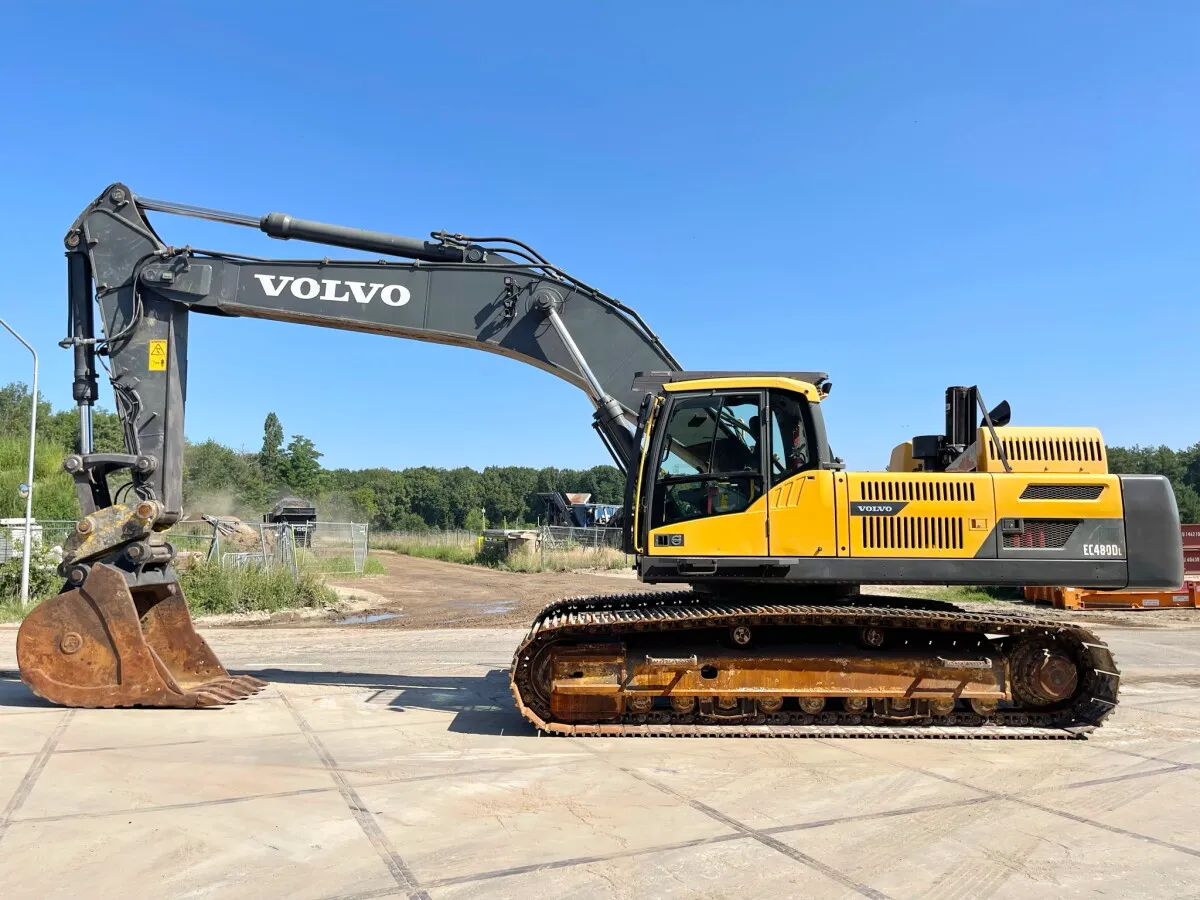

    Volvo EC480DLNew

    Volvo EC480DL

    Engine

     12800 CC

    Bucket Capacity

    3.8 Cu.m

    Digging Depth

    6580 mm

    Ex-showroom Price

    ₹ 39 L - 41 L

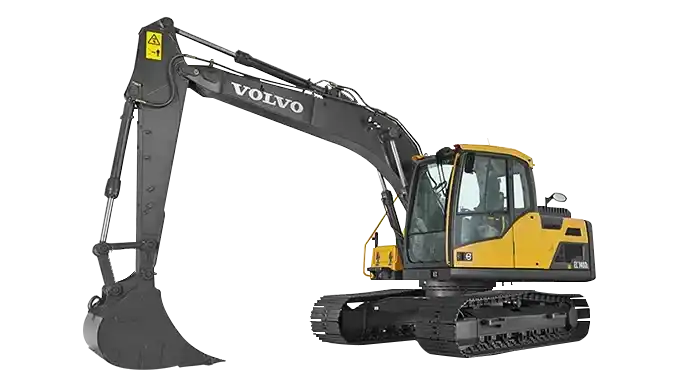

    Volvo EC140DL New

    Volvo EC140DL

    Engine

    3770 CC

    Bucket Capacity

    0.66 Cu.m

    Digging Depth

    6030 mm

    Ex-showroom Price

    ₹ 49 L - 51 L

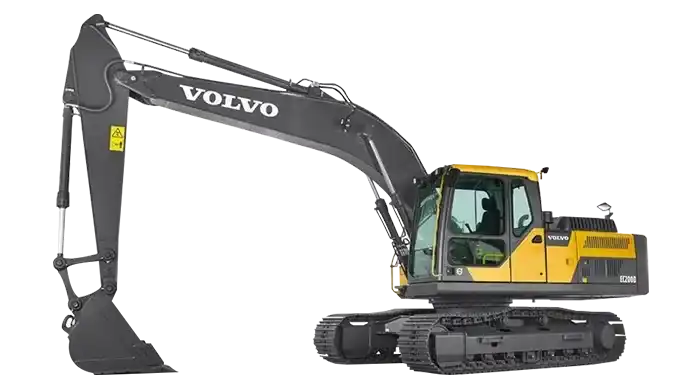

    Volvo EC200DNew
