Volvo EC210D

star

4

Ex-Showroom Price

₹ 62 L - 64 L

Diesel

Diesel

22800 kg

22800 kg

6730 mm

6730 mm

Download Volvo EC210D Brochure

Download Volvo EC210D brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of Volvo EC210D

Engine Power

Engine Power

156 HP

Operating Weight

Operating Weight

22800 kg

Bucket capacity

Bucket capacity

1.22 Cu.m

Hydraulic system

Hydraulic system

212 L/min

Maximum Digging Depth

Maximum Digging Depth

6730 mm

Boom Height

Boom Height

3 m

About Volvo EC210D Overview

The Volvo EC210D is a medium‑class crawler excavator designed to deliver powerful performance, efficiency, and operator comfort across a wide range of construction, earthmoving, quarrying, and materia...

Volvo EC210D Specifications & Features

Engine

Engine ModelD5E
Gross Power123 kW @ 2,000 kW
Net Power 115 kW @ 2,000 kW
Engine Power156 HP
Displacement4,700 cc
Number of Cylinders4 Nos
Rated RPM2,000 rpm
Emission StandardStage IIIA / Tier 3
Max Torque670 Nm
Fuel TypeDiesel

Operating Weights

Operating Weight22800 kg
Machine Weight22800 kg
Counterweight5423 kg
Ground Pressure47 kPa

Hydraulic System

Main Pump TypeVariable displacement axial piston pumps (dual)
Maximum Hydraulic Flow2 × 212 L/min
Maximum System Pressure324  bar
Hydraulic Oil Capacity300 litres
Auxiliary Hydraulic Flow180 L/min

Working Range

Maximum Digging Depth6730 mm
Maximum Vertical Wall Digging Depth6,090  mm
Maximum Reach at Ground Level9,930 mm
Maximum Dumping Height6,650 mm
Maximum Cutting Height9,460  mm
Boom Length5.700 m
Arm Length2,900 mm
Bucket Breakout Force130  kN
Arm Tear-out Force102 kN

Volvo EC210D EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹1,35,691

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount₹61,00,000
Interest Amount (12 %)₹20,41,468
Total Amount Payable₹81,41,468

Volvo EC210D Pros and cons

like

Pros

  • Strong Engine & Hydraulic Performance
  • Fuel Efficiency & Work Modes
  • Operator Comfort & Control
    • dislike

    Cons

  • Higher Upfront Cost
  • Weight & Transport
  • Slightly Lower Breakout Force

    • Download Volvo EC210D Brochure PDF

    Download Volvo EC210D brochure online. Check out the Volvo EC210D PDF brochure at Only Heavy with all features and specifications.

    Volvo EC210D Uses

    uses

    Excavation

    uses

    Digging

    uses

    Loading

    uses

    Construction

    uses

    Material handling

    uses

    Trenching

    Volvo EC210D Loan Offers

    location

    Explore Volvo EC210D Alternatives

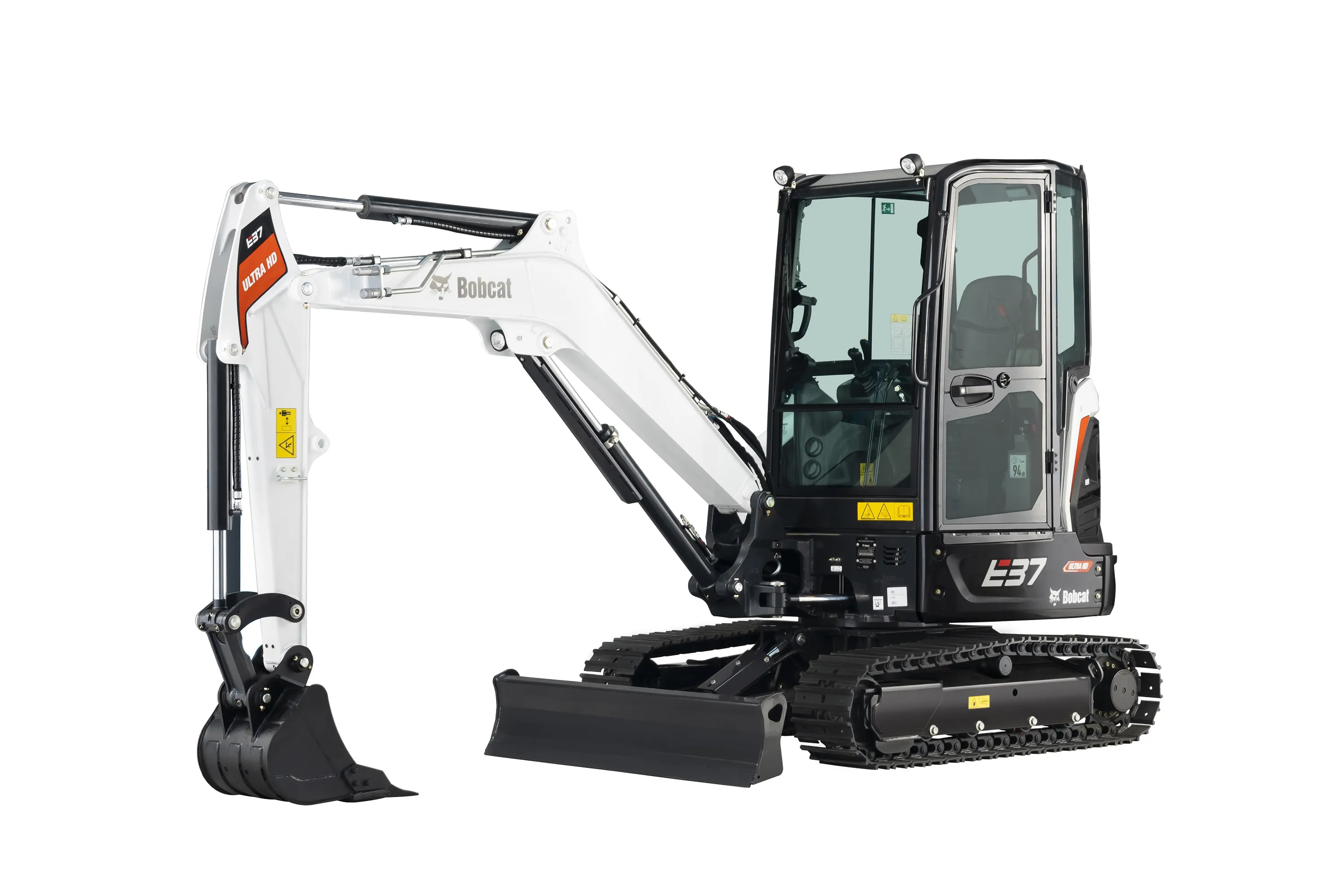

    BOBCAT E37 ULTRA HDNew

    BOBCAT E37 ULTRA HD

    Engine

    1860 CC

    Bucket Capacity

    0.11 Cu.m

    Digging Depth

    3117 mm

    Ex-showroom Price

    ₹ 1.00 Cr - 1.50 Cr

    CASE CX 220CNew

    CASE CX 220C

    Engine

    6727 CC

    Bucket Capacity

    1 Cu.m

    Digging Depth

    6650 mm

    Ex-showroom Price

    ₹ 70 L - 75 L

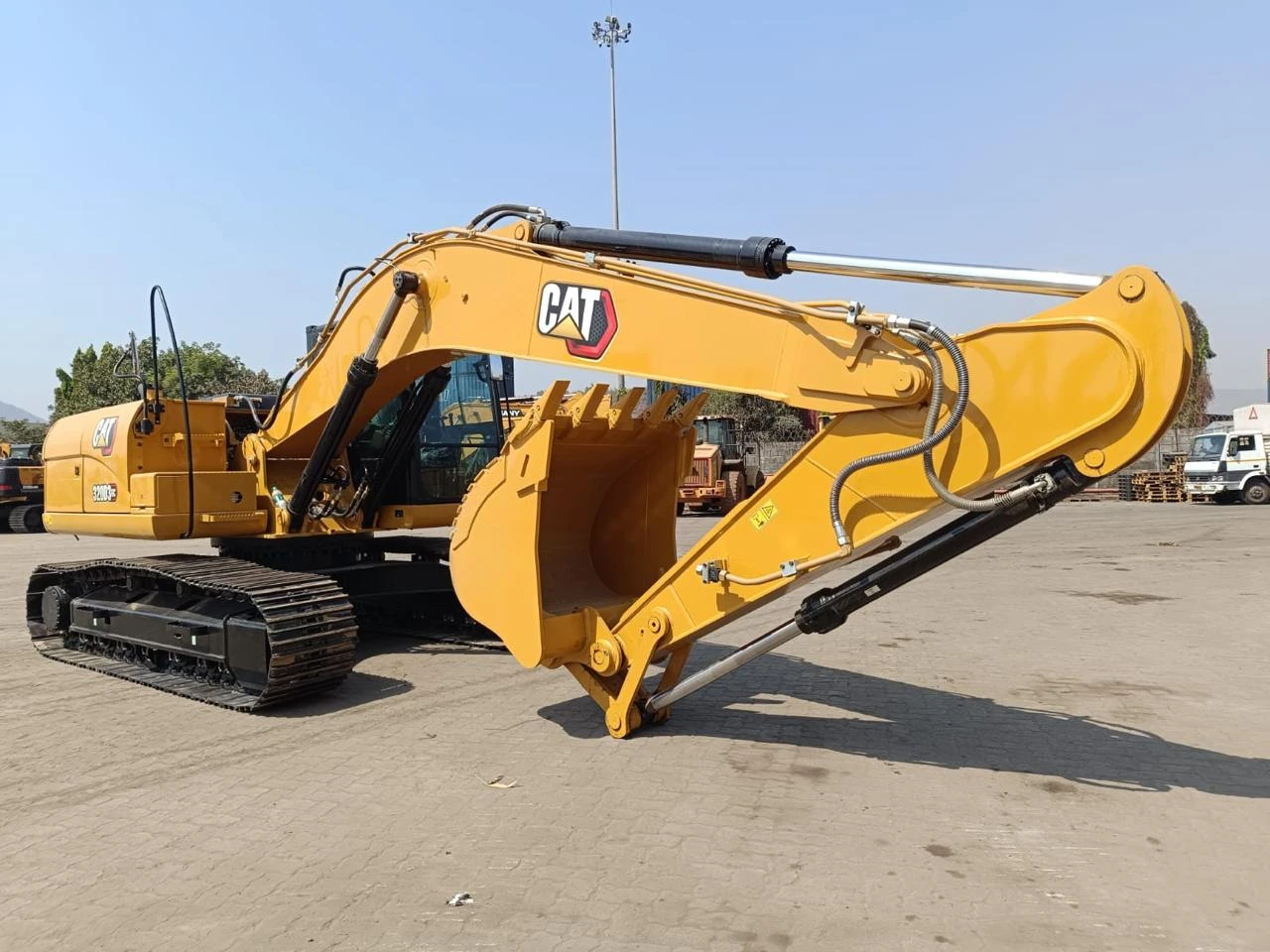

    CAT 320D3 GCNew

    CAT 320D3 GC

    Engine

    5,760 CC

    Bucket Capacity

    0.92 Cu.m

    Digging Depth

    6005 mm

    Ex-showroom Price

    ₹ 86.25 L - 86.75 L

    JCB NXT 290 LR New

    JCB NXT 290 LR

    Engine

    5880 CC

    Bucket Capacity

    1.2 Cu.m

    Digging Depth

    17300 mm

    Ex-showroom Price

    ₹ 81 L - 83.01 L

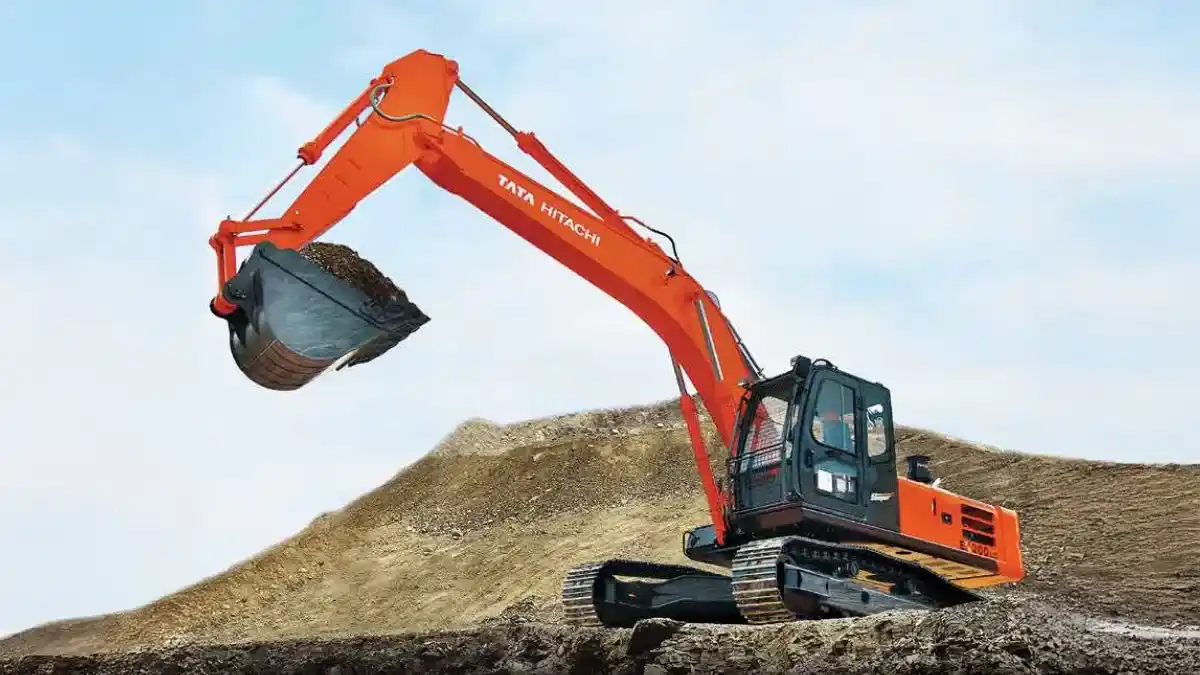

    Tata Hitachi EX 200LC SuperNew

    Tata Hitachi EX 200LC Super

    Engine

    6494 CC

    Bucket Capacity

    1.5 Cu.m

    Digging Depth

    6600 mm

    Ex-showroom Price

    ₹ 61 L - 62.98 L

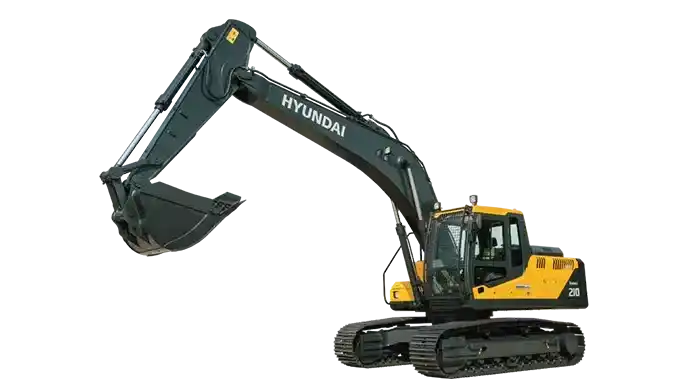

    HYUNDAI R210ENew

    HYUNDAI R210E

    Engine

    5,880 CC

    Bucket Capacity

    0.92 Cu.m

    Digging Depth

    5780 mm

    Ex-showroom Price

    ₹ 60 L - 70 L

    SANY SY220c-9XL SPARC New

    SANY SY220c-9XL SPARC

    Engine

    5860 CC

    Bucket Capacity

    1.2 Cu.m

    Digging Depth

    6600 mm

    Ex-showroom Price

    ₹ 77 L - 78 L

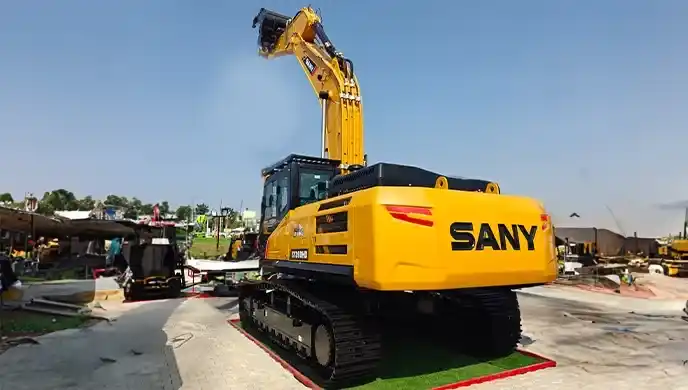

    SANY SY390C-10HD Grama PlusNew
