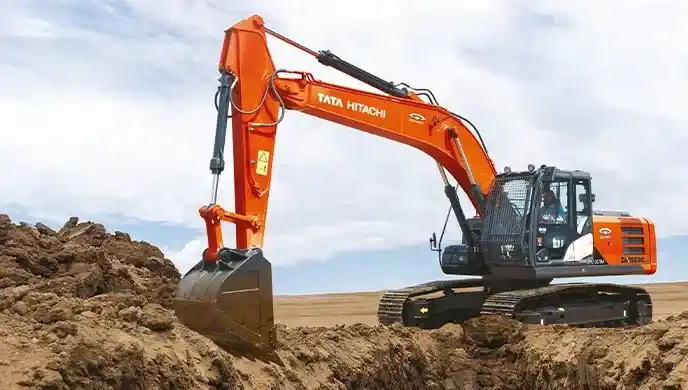

Tata Hitachi Zaxis 220lc ultra

star

5

Ex-Showroom Price

₹ 63 L - 69.99 L

Diesel

Diesel

21700 kg

21700 kg

6630 mm

6630 mm

Download Tata Hitachi Zaxis 220lc ultra Brochure

Download Tata Hitachi Zaxis 220lc ultra brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of Tata Hitachi Zaxis 220lc ultra

Engine Power

Engine Power

168 HP

Operating Weight

Operating Weight

21700 kg

Bucket capacity

Bucket capacity

0.9 Cu.m

Hydraulic system

Hydraulic system

424 L/min

Maximum Digging Depth

Maximum Digging Depth

6630 mm

Boom Height

Boom Height

5.68 m

About Tata Hitachi Zaxis 220lc ultra Overview

Tata Hitachi Zaxis 220lc ultra is a popular Excavator in the construction vehicle industry.This Tata Hitachi Zaxis 220lc ultra in India is available at a competitive price range. Tata Hitachi Zaxis 22...

Tata Hitachi Zaxis 220lc ultra Specifications & Features

Engine

Engine ModelIsuzu CC-6BG1T
Gross Power125 kW
Net Power125 kW
Engine Power168 HP
Displacement6494 cc
Number of Cylinders6 Nos
Rated RPM2100 rpm
Emission StandardBS IV
Max Torque637 Nm
Fuel TypeDiesel

Operating Weights

Operating Weight21700 kg
Machine Weight21700 kg
Counterweight4200 kg
Ground Pressure450 kPa

Hydraulic System

Main Pump Type2 × variable displacement axial piston pumps
Maximum Hydraulic Flow424 L/min
Maximum System Pressure343 bar
Hydraulic Oil Capacity240 litres
Auxiliary Hydraulic Flow120 L/min

Working Range

Maximum Digging Depth6630 mm
Maximum Vertical Wall Digging Depth6030 mm
Maximum Reach at Ground Level9435 mm
Maximum Dumping Height6870 mm
Maximum Cutting Height10070 mm
Boom Length5.700 m
Arm Length2200 mm
Bucket Breakout Force161 kN
Arm Tear-out Force110 kN

Tata Hitachi Zaxis 220lc ultra EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹1,37,916

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount₹62,00,000
Interest Amount (12 %)₹20,74,935
Total Amount Payable₹82,74,935

Tata Hitachi Zaxis 220lc ultra Pros and cons

like

Pros

  • Powerful engine & torque – ~168 HP from an Isuzu engine gives good digging and lifting capacity.
  • Strong hydraulic system – high flow and pressure supports heavier attachments like breakers, augers, and thumbs.
  • Bucket versatility – options ~0.9–1.22 m³ suit medium earthmoving and loading tasks.
    • dislike

    Cons

  • Relatively high price – ~₹ 69–71 L, which is slightly higher compared to some competitors in the 22 t class.
  • Average travel speed – ~5 km/h is adequate but slower than some rivals.
  • Fuel consumption not always specified – harder to estimate running costs vs competitors. (market feedback)

    • Download Tata Hitachi Zaxis 220lc ultra Brochure PDF

    Download Tata Hitachi Zaxis 220lc ultra brochure online. Check out the Tata Hitachi Zaxis 220lc ultra PDF brochure at Only Heavy with all features and specifications.

    Tata Hitachi Zaxis 220lc ultra Uses

    uses

    Excavation

    uses

    Digging

    uses

    Loading

    uses

    Construction

    uses

    Material handling

    uses

    Trenching

    Tata Hitachi Zaxis 220lc ultra Loan Offers
