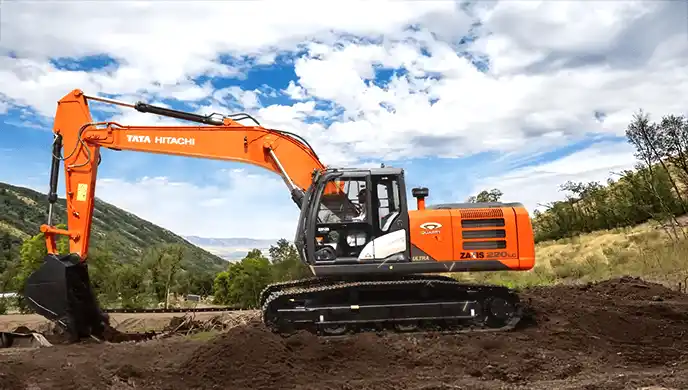

Tata Hitachi EX 200 Infra

star

5

Ex-Showroom Price

₹ 63 L - 65 L

Diesel

Diesel

20000 kg

20000 kg

5920 mm

5920 mm

Download Tata Hitachi EX 200 Infra Brochure

Download Tata Hitachi EX 200 Infra brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of Tata Hitachi EX 200 Infra

Engine Power

Engine Power

133 HP

Operating Weight

Operating Weight

20000 kg

Bucket capacity

Bucket capacity

0.91 Cu.m

Hydraulic system

Hydraulic system

221 L/min

Maximum Digging Depth

Maximum Digging Depth

5920 mm

Boom Height

Boom Height

5.68 m

About Tata Hitachi EX 200 Infra Overview

Tata Hitachi is a very popular name in the heavy construction equipment segment. Tata Hitachi EX 200 Infra is designed with segment best specification, which helps in providing better work efficiency....

Tata Hitachi EX 200 Infra Specifications & Features

Engine

Engine ModelCummins 6BT5.9C, 4-stroke, water-cooled, turbocharged
Gross Power98 kW
Net Power95 kW
Engine Power131 HP
Displacement5900 cc
Number of Cylinders6 Nos
Rated RPM2000 rpm
Emission StandardBS III
Max Torque540 Nm
Fuel TypeDiesel

Operating Weights

Operating Weight20000 kg
Machine Weight19800 kg
Counterweight4100 kg
Ground Pressure47 kPa

Hydraulic System

Main Pump TypeDual variable displacement axial piston pumps
Maximum Hydraulic Flow440 L/min
Maximum System Pressure320 bar
Hydraulic Oil Capacity220 litres
Auxiliary Hydraulic Flow120 L/min

Working Range

Maximum Digging Depth5920 mm
Maximum Vertical Wall Digging Depth5400 mm
Maximum Reach at Ground Level9080 mm
Maximum Dumping Height6600 mm
Maximum Cutting Height9400 mm
Boom Length5.680 m
Arm Length2920 mm
Bucket Breakout Force150 kN
Arm Tear-out Force110 kN

Tata Hitachi EX 200 Infra EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

1,37,916

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount62,00,000
Interest Amount (12 %)20,74,935
Total Amount Payable82,74,935

Tata Hitachi EX 200 Infra Pros and cons

like

Pros

  • Cost-effective in the 20-ton medium excavator class — typically lower priced than some competitors like Komatsu PC210.
  • Reliable Cummins engine with decent power and torque for general infra and construction work.
  • Balanced design — good bucket size (~0.86–0.91 m³) and reach for earthmoving, trenching, site prep
  • dislike

    Cons

  • Fuel consumption can be moderate (reported ~13 L/hour in comparisons).
  • Lower engine power compared with some rivals like ZAXIS 220LC or XCMG XE210i (which offer ~168 HP or higher).
  • Bucket capacity slightly smaller than some competitors (0.86–0.91 m³ vs ~0.9–1.2 m³ in others).
  • Download Tata Hitachi EX 200 Infra Brochure PDF

    Download Tata Hitachi EX 200 Infra brochure online. Check out the Tata Hitachi EX 200 Infra PDF brochure at Only Heavy with all features and specifications.

    Tata Hitachi EX 200 Infra Uses
