KUBOTA U22-3

star

5

Ex-Showroom Price

₹ 20 L - 30 L

Diesel

Diesel

2230 kg

2230 kg

2390 mm

2390 mm

Download KUBOTA U22-3 Brochure

Download KUBOTA U22-3 brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of KUBOTA U22-3

Engine Power

Engine Power

19 HP

Operating Weight

Operating Weight

2230 kg

Bucket capacity

Bucket capacity

0.12 Cu.m

Hydraulic system

Hydraulic system

36 L/min

Maximum Digging Depth

Maximum Digging Depth

2390 mm

Boom Height

Boom Height

3.8 m

About KUBOTA U22-3 Overview

KUBOTA U22-3 is a popular Excavator in the construction vehicle industry.This KUBOTA U22-3 in India is available at a competitive price range. KUBOTA U22-3 is equipped with a powerful engine generatin...

KUBOTA U22-3 Specifications & Features

Engine

Engine ModelKubota D1105‑E4
Gross Power14.3 kW
Net Power14 kW
Engine Power19 HP
Displacement1150 cc
Number of Cylinders3 Nos
Rated RPM2400 rpm
Emission StandardBS IV
Max Torque75 Nm
Fuel TypeDiesel

Operating Weights

Operating Weight2230 kg
Machine Weight2230 kg
Counterweight350 kg
Ground Pressure40 kPa

Hydraulic System

Main Pump TypeGear Pump / Variable Displacement
Maximum Hydraulic Flow36 L/min
Maximum System Pressure180 bar
Hydraulic Oil Capacity40 litres
Auxiliary Hydraulic Flow36 L/min

Working Range

Maximum Digging Depth2390 mm
Maximum Vertical Wall Digging Depth2200 mm
Maximum Reach at Ground Level4000 mm
Maximum Dumping Height3100 mm
Maximum Cutting Height3880 mm
Boom Length1.600 m
Arm Length1200 mm
Bucket Breakout Force13 kN
Arm Tear-out Force8 kN

KUBOTA U22-3 EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹42,264

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount₹19,00,000
Interest Amount (12 %)₹6,35,867
Total Amount Payable₹25,35,867

KUBOTA U22-3 Pros and cons

like

Pros

  • Small footprint and tight turning radius make it ideal for urban jobs, landscaping, and utility trenches.
  • 2.39 m digging depth and 3.88 m reach cover most common mini‑excavation tasks.
  • 36 L/min auxiliary flow supports small attachments (auger, breaker, etc.)
    • dislike

    Cons

  • Likely smaller bucket capacity compared to larger mini models (U25 or U30), reducing material moved per cycle.
  • 19 hp engine is modest; heavy soils or tough digging conditions may require slower operation.
  • 36 L/min auxiliary flow may limit performance with high‑demand attachments vs bigger machines.

    • Download KUBOTA U22-3 Brochure PDF

    Download KUBOTA U22-3 brochure online. Check out the KUBOTA U22-3 PDF brochure at Only Heavy with all features and specifications.

    KUBOTA U22-3 Uses

    uses

    Excavation

    uses

    Digging

    uses

    Loading

    uses

    Construction

    uses

    Material handling

    uses

    Trenching

    KUBOTA U22-3 Loan Offers

    location

    Explore KUBOTA U22-3 Alternatives

    BOBCAT E20ZNew

    BOBCAT E20Z

    Engine

    720 CC

    Bucket Capacity

    0.05 Cu.m

    Digging Depth

    2343 mm

    Ex-showroom Price

    ₹ 23 L - 25 L

    CASE CX 220CNew

    CASE CX 220C

    Engine

    6727 CC

    Bucket Capacity

    1 Cu.m

    Digging Depth

    6650 mm

    Ex-showroom Price

    ₹ 70 L - 75 L

    CAT 322 New

    CAT 322

    Engine

    4760 CC

    Bucket Capacity

    1 Cu.m

    Digging Depth

    6310 mm

    Ex-showroom Price

    ₹ 45 L - 49 L

    JCB 520X LCNew

    JCB 520X LC

    Engine

    11000 CC

    Bucket Capacity

    3.4 Cu.m

    Digging Depth

    7000 mm

    Ex-showroom Price

    ₹ 45 L - 64.99 L

    Tata Hitachi EX 210LCNew

    Tata Hitachi EX 210LC

    Engine

    6494 CC

    Bucket Capacity

    1.5 Cu.m

    Digging Depth

    6600 mm

    Ex-showroom Price

    ₹ 34 L - 36 L

    Volvo EC210 New

    Volvo EC210

    Engine

    4700 CC

    Bucket Capacity

    1.1 Cu.m

    Digging Depth

    6380 mm

    Ex-showroom Price

    ₹ 21 L - 24.98 L

    KUBOTA KX713 Super SeriesNew

    KUBOTA KX713 Super Series

    Engine

    1498  CC

    Bucket Capacity

    0.4 Cu.m

    Digging Depth

    2970 mm

    Ex-showroom Price

    ₹ 6 L - 8 L

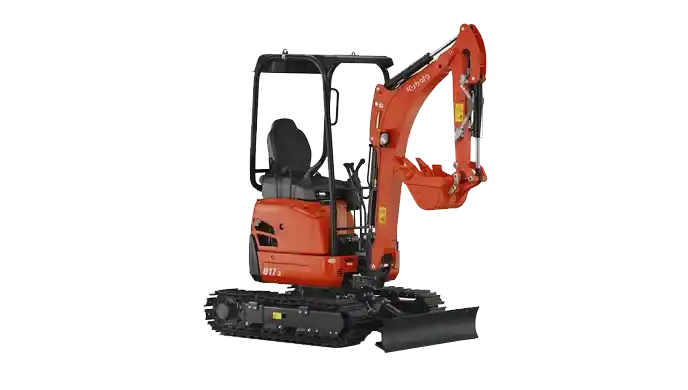

    KUBOTA U17-3New
