Kobelco SK380HDLC

Ex-Showroom Price

₹ 26 L - 27 L

Diesel

36000 kg

6 mm

Download Kobelco SK380HDLC Brochure

Download Kobelco SK380HDLC brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of Kobelco SK380HDLC

Engine Power

268 HP

Operating Weight

36000 kg

Bucket capacity

2.3 Cu.m

Hydraulic system

6840 L/min

Maximum Digging Depth

6 mm

Boom Height

10 m

About Kobelco SK380HDLC Overview

The Kobelco SK380HDLC is a heavy‑duty hydraulic excavator engineered for demanding construction, civil engineering, and earthmoving operations. Built as part of Kobelco’s ACERA GEOSPEC HDLC (Heavy Dut...

Kobelco SK380HDLC Specifications & Features

Engine

Engine ModelHINO J08E-TM

Gross Power209 kW

Net Power188 kW

Engine Power268 HP

Displacement7,684 cc

Number of Cylinders6 Nos

Rated RPM2100 rpm

Emission StandardStage IIIA

Max Torque1600 Nm

Fuel TypeDiesel

Operating Weights

Operating Weight36000 kg

Machine Weight35,800 kg

Counterweight36000 kg

Ground Pressure67 kPa

Hydraulic System

Main Pump TypeTwo variable displacement pumps + one gear pump

Maximum Hydraulic Flow294 L/min

Maximum System Pressure343 bar

Hydraulic Oil Capacity353 litres

Auxiliary Hydraulic FlowDepends on auxiliary circuit setup L/min

Working Range

Maximum Digging Depth6 mm

Maximum Vertical Wall Digging Depth5,840 mm

Maximum Reach at Ground Level10,610 mm

Maximum Dumping Height7,060 mm

Maximum Cutting Height10,260 mm

Boom Length6.500 m

Arm Length3,300 mm

Bucket Breakout Force236 kN

Arm Tear-out Force253 kN

Kobelco SK380HDLC EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹55,611

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹25,00,000
Interest Amount (12 %)	₹8,36,667
Total Amount Payable	₹33,36,667

Kobelco SK380HDLC Pros and cons

Pros

Strong engine output

Large fuel tank

Good reach and boom/arm length

Cons

Higher purchase price

Heavier operating weight

Bucket capacity range is competitive

Download Kobelco SK380HDLC Brochure PDF

Download Kobelco SK380HDLC brochure online. Check out the Kobelco SK380HDLC PDF brochure at Only Heavy with all features and specifications.

Kobelco SK380HDLC Uses

Excavation

Digging

Construction

Material handling

Trenching

Kobelco SK380HDLC Loan Offers

Explore Kobelco SK380HDLC Alternatives

New

BOBCAT E20Z

Engine

720 CC

Bucket Capacity

0.05 Cu.m

Digging Depth

2343 mm

Ex-showroom Price

₹ 23 L - 25 L

New

CAT 320D

Engine

6370 CC

Bucket Capacity

1 Cu.m

Digging Depth

6720 mm

Ex-showroom Price

₹ 22 L - 23.99 L

New

JCB NXT 210LC Fuel Master

Engine

5880 CC

Bucket Capacity

0.9 Cu.m

Digging Depth

6730 mm

Ex-showroom Price

₹ 26 L - 35.99 L

New

Tata Hitachi EX 70 Super Plus

Engine

2800 CC

Bucket Capacity

0.68 Cu.m

Digging Depth

4150 mm

Ex-showroom Price

₹ 30 L - 32 L

New

Volvo EC210

Engine

4700 CC

Bucket Capacity

1.1 Cu.m

Digging Depth

6380 mm

Ex-showroom Price

₹ 21 L - 24.98 L

New

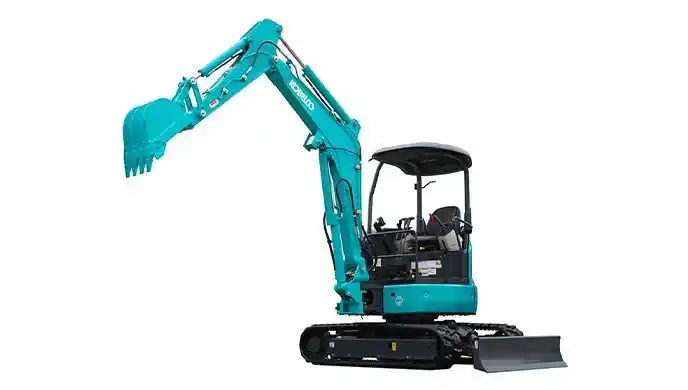

Kobelco SK30SR
