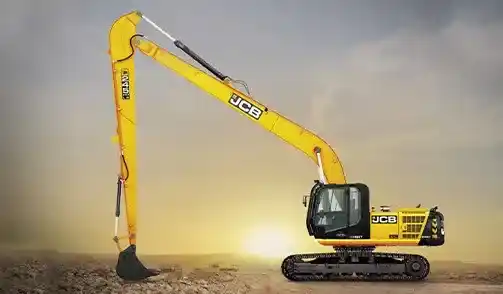

JCB NXT 290 LR

star

5

Ex-Showroom Price

₹ 81 L - 83.01 L

Diesel

Diesel

47173.6 kg

47173.6 kg

17300 mm

17300 mm

Download JCB NXT 290 LR Brochure

Download JCB NXT 290 LR brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of JCB NXT 290 LR

Engine Power

Engine Power

200 HP

Operating Weight

Operating Weight

47173.6 kg

Bucket capacity

Bucket capacity

1.2 Cu.m

Hydraulic system

Hydraulic system

480 L/min

Maximum Digging Depth

Maximum Digging Depth

17300 mm

Boom Height

Boom Height

7 m

About JCB NXT 290 LR Overview

JCB NXT 290 LR is a popular Excavator in the construction vehicle industry.This JCB NXT 290 LR in India is available at a competitive price range. JCB NXT 290 LR comes with an optimal gross power with...

JCB NXT 290 LR Specifications & Features

Engine

Engine ModelInline FIP Diesel (JCB’s in-house or Cummins family engine option likely)
Gross Power160 kW
Net Power170 kW
Engine Power200 HP
Displacement5880 cc
Number of Cylinders6 Nos
Rated RPM2200 rpm
Emission StandardBS IV
Max Torque765 Nm
Fuel TypeDiesel

Operating Weights

Operating Weight47173 kg
Machine Weight47173 kg
Counterweight3420 kg
Ground Pressure32 kPa

Hydraulic System

Main Pump TypeVariable Displacement Axial Piston
Maximum Hydraulic Flow580 L/min
Maximum System Pressure380 bar
Hydraulic Oil Capacity210 litres
Auxiliary Hydraulic Flow187 L/min

Working Range

Maximum Digging Depth17300 mm
Maximum Vertical Wall Digging Depth6100 mm
Maximum Reach at Ground Level18000 mm
Maximum Dumping Height10000 mm
Maximum Cutting Height9800 mm
Boom Length8 m
Arm Length7000 mm
Bucket Breakout Force150 kN
Arm Tear-out Force110 kN

JCB NXT 290 LR EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹1,77,956

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount₹80,00,000
Interest Amount (12 %)₹26,77,335
Total Amount Payable₹1,06,77,335

JCB NXT 290 LR Pros and cons

like

Pros

  • Very deep dig capability — class-leading reach (~17.3 m) for deep excavation, water work, river dredging, and civil engineering.
  • High operating weight (~47 t) gives stability and strength for heavy long-reach operations.
  • Suitable for specialized deep-dig jobs that standard excavators can’t reach.
    • dislike

    Cons

  • Fuel consumption likely high due to size and duty cycle of long-reach operation.
  • Bucket capacity & hydraulic flow not published publicly — you’ll need dealer confirmation before purchase.
  • Less versatile compared with standard excavators for general excavation tasks (it’s specialized for long reach).

    • Download JCB NXT 290 LR Brochure PDF

    Download JCB NXT 290 LR brochure online. Check out the JCB NXT 290 LR PDF brochure at Only Heavy with all features and specifications.

    JCB NXT 290 LR Uses

    uses

    Excavation

    uses

    Digging

    uses

    Loading

    uses

    Construction

    uses

    Material handling

    uses

    Trenching

    JCB NXT 290 LR Loan Offers

    location

    Explore JCB NXT 290 LR Alternatives

    BOBCAT E37 ULTRA HDNew

    BOBCAT E37 ULTRA HD

    Engine

    1860 CC

    Bucket Capacity

    0.11 Cu.m

    Digging Depth

    3117 mm

    Ex-showroom Price

    ₹ 1.00 Cr - 1.50 Cr

    CASE CX 220CNew

    CASE CX 220C

    Engine

    6727 CC

    Bucket Capacity

    1 Cu.m

    Digging Depth

    6650 mm

    Ex-showroom Price

    ₹ 70 L - 75 L

    CAT 320D3 GCNew

    CAT 320D3 GC

    Engine

    5,760 CC

    Bucket Capacity

    0.92 Cu.m

    Digging Depth

    6005 mm

    Ex-showroom Price

    ₹ 86.25 L - 86.75 L

    JCB NXT 215LCNew

    JCB NXT 215LC

    Engine

    5880 CC

    Bucket Capacity

    1.02 Cu.m

    Digging Depth

    6730 mm

    Ex-showroom Price

    ₹ 60 L - 62 L

    Tata Hitachi EX 200LC SuperNew

    Tata Hitachi EX 200LC Super

    Engine

    6494 CC

    Bucket Capacity

    1.5 Cu.m

    Digging Depth

    6600 mm

    Ex-showroom Price

    ₹ 61 L - 62.98 L

    Volvo EC210DNew

    Volvo EC210D

    Engine

    4700  CC

    Bucket Capacity

    1.22 Cu.m

    Digging Depth

    6730 mm

    Ex-showroom Price

    ₹ 62 L - 64 L

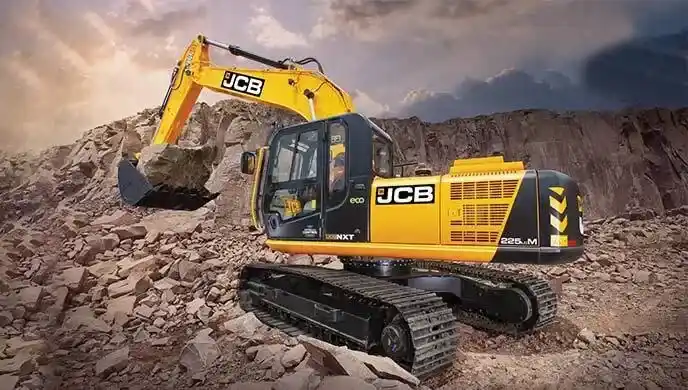

    JCB NXT 225 LCMNew
