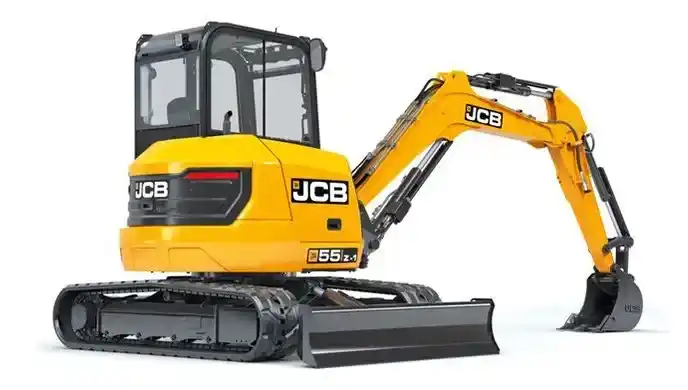

JCB 55Z

star

5

Ex-Showroom Price

₹ 36 L - 39 L

Diesel

Diesel

5520 kg

5520 kg

3840 mm

3840 mm

Download JCB 55Z Brochure

Download JCB 55Z brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of JCB 55Z

Engine Power

Engine Power

48 HP

Operating Weight

Operating Weight

5520 kg

Bucket capacity

Bucket capacity

0.22 Cu.m

Hydraulic system

Hydraulic system

90 L/min

Maximum Digging Depth

Maximum Digging Depth

3840 mm

Boom Height

Boom Height

2.87 m

About JCB 55Z Overview

JCB is a very popular name in the heavy construction equipment segment. JCB 55Z is designed with segment best specification, which helps in providing better work efficiency. The Excavator model from J...

JCB 55Z Specifications & Features

Engine

Engine ModelStage 3A 404D‑22
Gross Power35.7 kW
Net Power33.1 kW
Engine Power48 HP
Displacement2179 cc
Number of Cylinders4 Nos
Rated RPM2600 rpm
Emission StandardBS III
Max Torque143 Nm
Fuel TypeDiesel

Operating Weights

Operating Weight5520 kg
Machine Weight5520 kg
Counterweight982 kg
Ground Pressure34.3 kPa

Hydraulic System

Main Pump TypePiston pump
Maximum Hydraulic Flow126 L/min
Maximum System Pressure240 bar
Hydraulic Oil Capacity100 litres
Auxiliary Hydraulic Flow63 L/min

Working Range

Maximum Digging Depth3840 mm
Maximum Vertical Wall Digging Depth3328 mm
Maximum Reach at Ground Level6200 mm
Maximum Dumping Height4270 mm
Maximum Cutting Height3728 mm
Boom Length2.866 m
Arm Length1450 mm
Bucket Breakout Force45 kN
Arm Tear-out Force29 kN

JCB 55Z EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹77,856

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount₹35,00,000
Interest Amount (12 %)₹11,71,334
Total Amount Payable₹46,71,334

JCB 55Z Pros and cons

like

Pros

  • 48 hp (35.7 kW), Stage‑compliant engine with ~143 Nm torque helps keep jobs moving.
  • Excellent for working close to walls/obstacles in confined sites without damaging structures.
  • 3.8 m digging depth and ~6.1 m reach offers versatility across trenching and site prep
    • dislike

    Cons

  • ₹37–39 L can be costlier than rivals (e.g., Sany SY60C) with similar specs.
  • Travel speed and traction are typical for mini class but may lag some competitors.
  • Heavier (~5520–5642 kg) increases transport/mobilization cost versus lighter minis.

    • Download JCB 55Z Brochure PDF

    Download JCB 55Z brochure online. Check out the JCB 55Z PDF brochure at Only Heavy with all features and specifications.

    JCB 55Z Uses

    uses

    Excavation

    uses

    Digging

    uses

    Loading

    uses

    Construction

    uses

    Material handling

    uses

    Trenching
