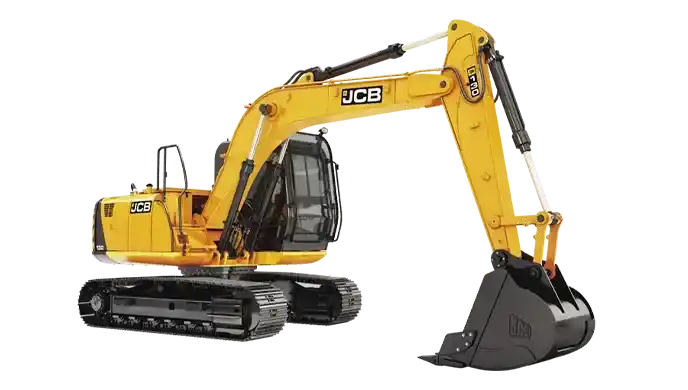

JCB 130

star

5

Ex-Showroom Price

₹ 35 L - 41.99 L

Diesel

Diesel

12800 kg

12800 kg

4833 mm

4833 mm

Download JCB 130 Brochure

Download JCB 130 brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of JCB 130

Engine Power

Engine Power

80 HP

Operating Weight

Operating Weight

12800 kg

Bucket capacity

Bucket capacity

0.65 Cu.m

Hydraulic system

Hydraulic system

124 L/min

Maximum Digging Depth

Maximum Digging Depth

4833 mm

Boom Height

Boom Height

4.4 m

About JCB 130 Overview

JCB is a very popular name in the heavy construction equipment segment. JCB 130 is designed with segment best specification, which helps in providing better work efficiency. The Excavator model from J...

JCB 130 Specifications & Features

Engine

Engine ModelJCB 444 NA
Gross Power60 kW
Net Power59.6 kW
Engine Power80 HP
Displacement4400 cc
Number of Cylinders4 Nos
Rated RPM2000 rpm
Emission StandardBS IV
Max Torque380 Nm
Fuel TypeDiesel

Operating Weights

Operating Weight12800 kg
Machine Weight12800 kg
Counterweight1920 kg
Ground Pressure44.1 kPa

Hydraulic System

Main Pump Type2 × Variable displacement axial piston pumps
Maximum Hydraulic Flow234 L/min
Maximum System Pressure320 bar
Hydraulic Oil Capacity124 litres
Auxiliary Hydraulic Flow117 L/min

Working Range

Maximum Digging Depth4833 mm
Maximum Vertical Wall Digging Depth4280 mm
Maximum Reach at Ground Level7450 mm
Maximum Dumping Height6120 mm
Maximum Cutting Height8580 mm
Boom Length4.400 m
Arm Length1950 mm
Bucket Breakout Force84.4 kN
Arm Tear-out Force56.8 kN

JCB 130 EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹75,631

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount₹34,00,000
Interest Amount (12 %)₹11,37,867
Total Amount Payable₹45,37,867

JCB 130 Pros and cons

like

Pros

  • Good Size for Mixed Jobs – ~12.8 t machine fits between mini and larger medium excavators for general construction.
  • Balanced Dig Depth & Reach – ~4.83 m dig depth and ~7.61 m reach offer solid performance for utility, site prep, and foundation work.
  • Established Brand & Dealer Support – JCB has wide service and parts support in India, which helps uptime.
    • dislike

    Cons

  • Lower Engine Power (~80 HP) — compared to some competitors in the segment, so less punch for heavy digging.
  • Moderate Breakout Forces — bucket & arm forces (~84.4 kN / ~56.8 kN) are adequate but not outstanding for rockier soils.
  • Not a Heavy Duty Excavator — best suited for general construction and landscaping rather than extended heavy mining/rock work.

    • Download JCB 130 Brochure PDF

    Download JCB 130 brochure online. Check out the JCB 130 PDF brochure at Only Heavy with all features and specifications.

    JCB 130 Uses

    uses

    Excavation

    uses

    Digging

    uses

    Loading

    uses

    Construction

    uses

    Material handling

    uses

    Trenching

    JCB 130 Loan Offers

    location

    Explore JCB 130 Alternatives

    BOBCAT E32New

    BOBCAT E32

    Engine

    1,123  CC

    Bucket Capacity

    0.6 Cu.m

    Digging Depth

    3892 mm

    Ex-showroom Price

    ₹ 55 L - 58 L

    CAT 322 New

    CAT 322

    Engine

    4760 CC

    Bucket Capacity

    1 Cu.m

    Digging Depth

    6310 mm

    Ex-showroom Price

    ₹ 45 L - 49 L

    JCB 520X LCNew

    JCB 520X LC

    Engine

    11000 CC

    Bucket Capacity

    3.4 Cu.m

    Digging Depth

    7000 mm

    Ex-showroom Price

    ₹ 45 L - 64.99 L

    Tata Hitachi EX 210LCNew

    Tata Hitachi EX 210LC

    Engine

    6494 CC

    Bucket Capacity

    1.5 Cu.m

    Digging Depth

    6600 mm

    Ex-showroom Price

    ₹ 34 L - 36 L

    Volvo EC215New

    Volvo EC215

    Engine

    5700 CC

    Bucket Capacity

    1.1 Cu.m

    Digging Depth

    6380 mm

    Ex-showroom Price

    ₹ 39 L - 40.99 L

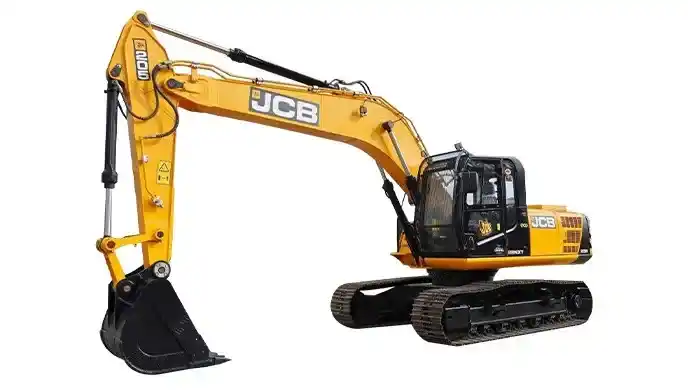

    JCB NXT 205New
