CAT 336E

star

4

Ex-Showroom Price

₹ 59 L - 61 L

Diesel

Diesel

37300 kg

37300 kg

7490 mm

7490 mm

Download CAT 336E Brochure

Download CAT 336E brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of CAT 336E

Engine Power

Engine Power

323 HP

Operating Weight

Operating Weight

37300 kg

Bucket capacity

Bucket capacity

2.28 Cu.m

Hydraulic system

Hydraulic system

578 L/min

Maximum Digging Depth

Maximum Digging Depth

7490 mm

Boom Height

Boom Height

10.32 m

About CAT 336E Overview

The Caterpillar 336E is a large hydraulic excavator designed for high‑productivity digging, lifting, and loading across construction, mining, and infrastructure jobsites. It blends strong power, effic...

CAT 336E Specifications & Features

Engine

Engine ModelC9.3 (ATAAC)
Gross Power241 kW
Net Power236 kW
Engine Power232 HP
Displacement9307 cc
Number of Cylinders6 Nos
Rated RPM1800 rpm
Emission StandardTier 3
Max Torque880 Nm
Fuel TypeDiesel

Operating Weights

Operating Weight37300 kg
Machine Weight38 700 kg
Counterweight7000 kg
Ground Pressure50 kPa

Hydraulic System

Main Pump Typevariable axial position
Maximum Hydraulic Flow578 L/min
Maximum System Pressure350 bar
Hydraulic Oil Capacity380 litres
Auxiliary Hydraulic Flow180 L/min

Working Range

Maximum Digging Depth7490 mm
Maximum Vertical Wall Digging Depth6500 mm
Maximum Reach at Ground Level11760 mm
Maximum Dumping Height10320 mm
Maximum Cutting Height10750 mm
Boom Length6.500 m
Arm Length3200 mm
Bucket Breakout Force200 kN
Arm Tear-out Force140 kN

CAT 336E EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹1,29,018

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount₹58,00,000
Interest Amount (12 %)₹19,41,068
Total Amount Payable₹77,41,068

CAT 336E Pros and cons

like

Pros

  • Strong Performance & Productivity
  • Serviceability & Reliability
  • Operator Comfort
    • dislike

    Cons

  • Visibility & Safety Concerns
  • Fuel Consumption
  • Undercarriage & Wear Issues

    • Download CAT 336E Brochure PDF

    Download CAT 336E brochure online. Check out the CAT 336E PDF brochure at Only Heavy with all features and specifications.

    CAT 336E Uses

    uses

    Excavation

    uses

    Digging

    uses

    Loading

    uses

    Construction

    uses

    Material handling

    uses

    Trenching

    CAT 336E Loan Offers

    location

    Explore CAT 336E Alternatives

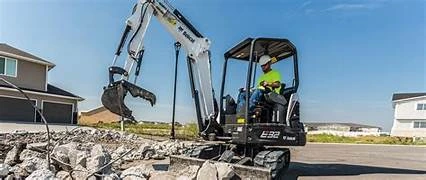

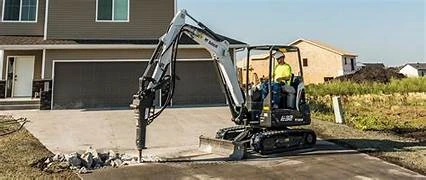

    BOBCAT E32New

    BOBCAT E32

    Engine

    1,123  CC

    Bucket Capacity

    0.6 Cu.m

    Digging Depth

    3892 mm

    Ex-showroom Price

    ₹ 55 L - 58 L

    CAT 322 New

    CAT 322

    Engine

    4760 CC

    Bucket Capacity

    1 Cu.m

    Digging Depth

    6310 mm

    Ex-showroom Price

    ₹ 45 L - 49 L

    JCB 520X LCNew

    JCB 520X LC

    Engine

    11000 CC

    Bucket Capacity

    3.4 Cu.m

    Digging Depth

    7000 mm

    Ex-showroom Price

    ₹ 45 L - 64.99 L

    Tata Hitachi EX 210LCNew

    Tata Hitachi EX 210LC

    Engine

    6494 CC

    Bucket Capacity

    1.5 Cu.m

    Digging Depth

    6600 mm

    Ex-showroom Price

    ₹ 34 L - 36 L

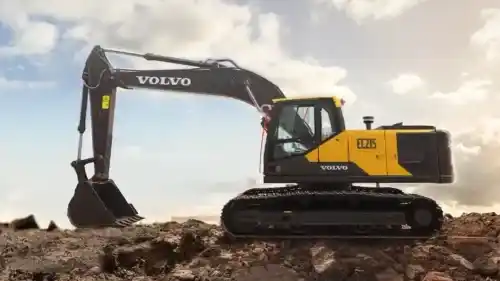

    Volvo EC215New

    Volvo EC215

    Engine

    5700 CC

    Bucket Capacity

    1.1 Cu.m

    Digging Depth

    6380 mm

    Ex-showroom Price

    ₹ 39 L - 40.99 L

    CAT 324New

    CAT 324

    Engine

    7100 CC

    Bucket Capacity

    1 Cu.m

    Digging Depth

    6310 mm

    Ex-showroom Price

    ₹ 46 L - 52.99 L

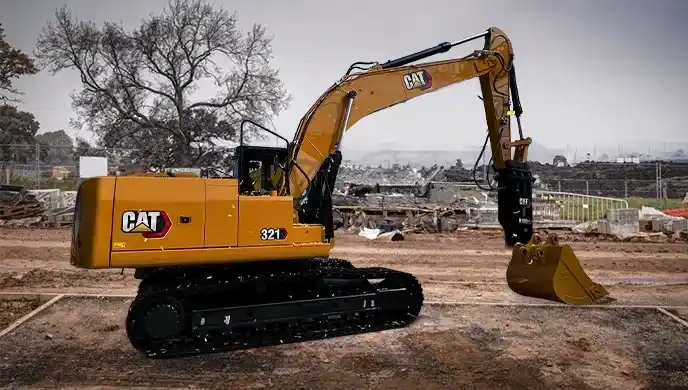

    CAT 321New
