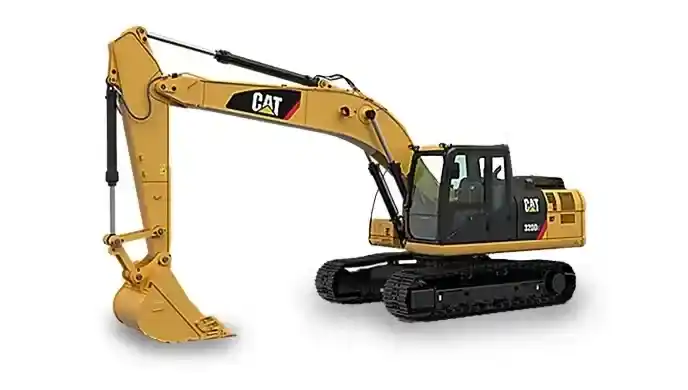

CAT 320D3

star

5

Ex-Showroom Price

₹ 25 L - 28 L

Diesel

Diesel

45860 kg

45860 kg

6300 mm

6300 mm

Download CAT 320D3 Brochure

Download CAT 320D3 brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of CAT 320D3

Engine Power

Engine Power

134 HP

Operating Weight

Operating Weight

45860 kg

Bucket capacity

Bucket capacity

0.92 Cu.m

Hydraulic system

Hydraulic system

400 L/min

Maximum Digging Depth

Maximum Digging Depth

6300 mm

Boom Height

Boom Height

5.7 m

About CAT 320D3 Overview

CAT 320D3 is a popular excavator in the construction vehicle industry. The price of this excavator starts from ₹ 25 Lakh and it goes up to ₹ 28 Lakh. Moreover The max digging depth of this excavator i...

CAT 320D3 Specifications & Features

Engine

Engine ModelCat ALUW06DTI
Gross Power100 kW
Net Power85 kW
Engine Power134 HP
Displacement5760 cc
Number of Cylinders6 Nos
Rated RPM1700 rpm
Emission StandardBS IV
Max Torque620 Nm
Fuel TypeDiesel

Operating Weights

Operating Weight45860 kg
Machine Weight42478 kg
Counterweight10211 kg
Ground Pressure44 kPa

Hydraulic System

Main Pump TypeVariable displacement axial piston pumps
Maximum Hydraulic Flow420 L/min
Maximum System Pressure350 bar
Hydraulic Oil Capacity234 litres
Auxiliary Hydraulic Flow150 L/min

Working Range

Maximum Digging Depth6300 mm
Maximum Vertical Wall Digging Depth5720 mm
Maximum Reach at Ground Level9470 mm
Maximum Dumping Height6710 mm
Maximum Cutting Height9250 mm
Boom Length5.700 m
Arm Length2500 mm
Bucket Breakout Force143 kN
Arm Tear-out Force99 kN

CAT 320D3 EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹53,387

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount₹24,00,000
Interest Amount (12 %)₹8,03,200
Total Amount Payable₹32,03,200

CAT 320D3 Pros and cons

like

Pros

  • Strong engine performance for a 20-ton class excavator: 134 HP gross (100 kW), ~114 HP net. Great for heavy digging and lifting tasks.
  • Typically well-insulated, ergonomically arranged operator cab with adjustable suspension seat, good visibility, and modern controls.
  • Selectable power modes (Power, Smart, Eco) improve fuel efficiency depending on task.
    • dislike

    Cons

  • Higher acquisition cost than many competitors in the same class — Cat products are premium priced.
  • 5.7 m boom is good for medium jobs, but long-reach variants or specialized configurations may be needed for deep excavation beyond ~9.4 m reach.
  • More complex electronics and hydraulics can mean higher service costs compared to simpler machines.

    • Download CAT 320D3 Brochure PDF

    Download CAT 320D3 brochure online. Check out the CAT 320D3 PDF brochure at Only Heavy with all features and specifications.

    CAT 320D3 Uses

    uses

    Excavation

    uses

    Digging

    uses

    Loading

    uses

    Construction

    uses

    Material handling

    uses

    Trenching

    CAT 320D3 Loan Offers

    location

    Explore CAT 320D3 Alternatives

    BOBCAT E20ZNew

    BOBCAT E20Z

    Engine

    720 CC

    Bucket Capacity

    0.05 Cu.m

    Digging Depth

    2343 mm

    Ex-showroom Price

    ₹ 23 L - 25 L

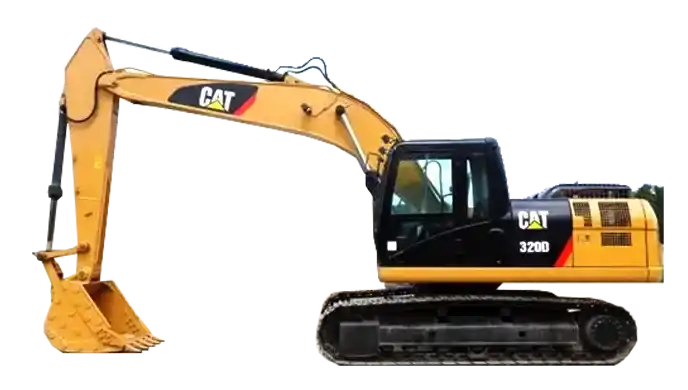

    CAT 320DNew

    CAT 320D

    Engine

    6370 CC

    Bucket Capacity

    1 Cu.m

    Digging Depth

    6720 mm

    Ex-showroom Price

    ₹ 22 L - 23.99 L

    JCB NXT 210LC Fuel Master New

    JCB NXT 210LC Fuel Master

    Engine

    5880 CC

    Bucket Capacity

    0.9 Cu.m

    Digging Depth

    6730 mm

    Ex-showroom Price

    ₹ 26 L - 35.99 L

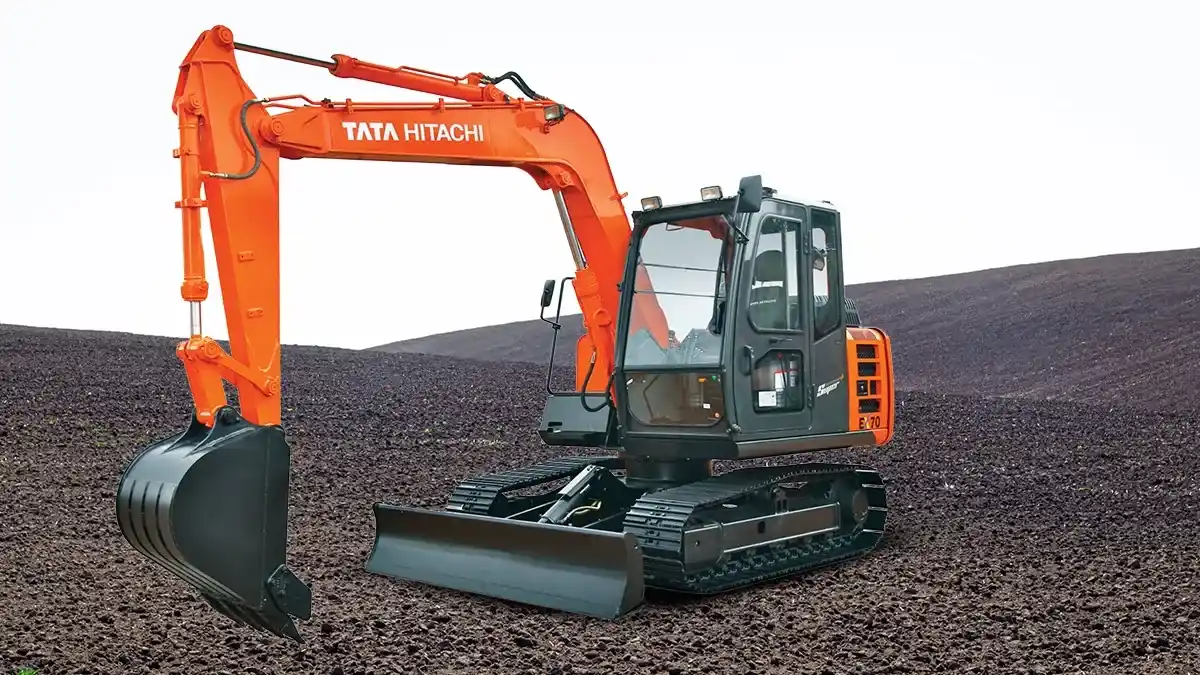

    Tata Hitachi EX 70 Super PlusNew

    Tata Hitachi EX 70 Super Plus

    Engine

    2800 CC

    Bucket Capacity

    0.68 Cu.m

    Digging Depth

    4150 mm

    Ex-showroom Price

    ₹ 30 L - 32 L

    Volvo EC210 New

    Volvo EC210

    Engine

    4700 CC

    Bucket Capacity

    1.1 Cu.m

    Digging Depth

    6380 mm

    Ex-showroom Price

    ₹ 21 L - 24.98 L

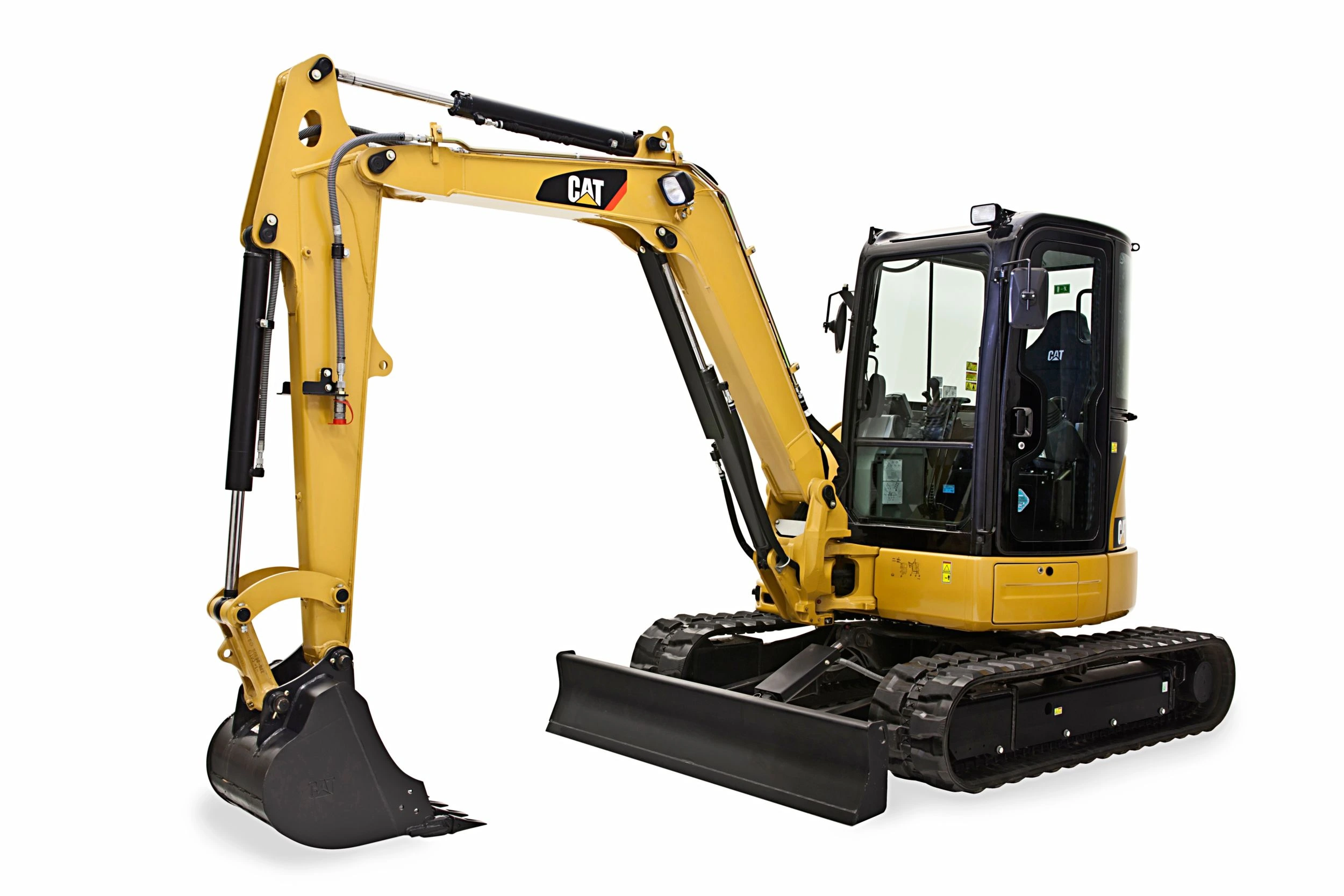

    CAT 305.5ENew

    CAT 305.5E

    Engine

    2393 CC

    Bucket Capacity

    0.06 Cu.m

    Digging Depth

    137 mm

    Ex-showroom Price

    ₹ 29 L - 31 L

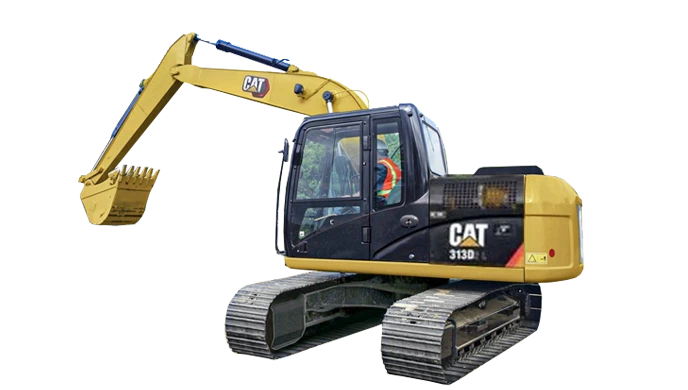

    CAT 313D2 LNew

    CAT 313D2 L

    Engine

    4400 CC

    Bucket Capacity

    0.53 Cu.m

    Digging Depth

    5548 mm

    Ex-showroom Price

    ₹ 19 L - 24 L

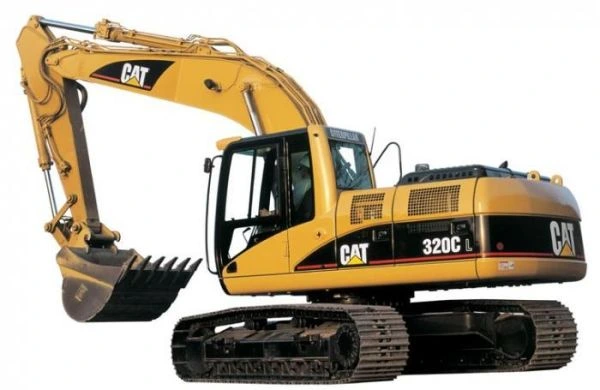

    CAT 320CNew
