BOBCAT E20Z

star

4

Ex-Showroom Price

₹ 23 L - 25 L

Diesel

Diesel

2039 kg

2039 kg

2343 mm

2343 mm

Download BOBCAT E20Z Brochure

Download BOBCAT E20Z brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of BOBCAT E20Z

Engine Power

Engine Power

14 HP

Operating Weight

Operating Weight

2039 kg

Bucket capacity

Bucket capacity

0.05 Cu.m

Hydraulic system

Hydraulic system

30 L/min

Maximum Digging Depth

Maximum Digging Depth

2343 mm

Boom Height

Boom Height

4.089 m

About BOBCAT E20Z Overview

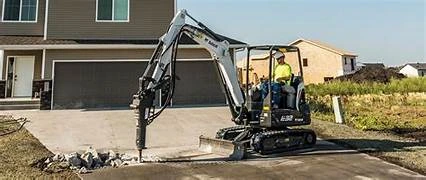

The Bobcat E20Z is a compact (mini) excavator built for digging, trenching, lifting, and site prep in tight or confined spaces where larger machines can’t fit. Its zero‑tail‑swing design and retractab...

BOBCAT E20Z Specifications & Features

Engine

Engine ModelKubota / D722-E4B-BCZ-7
Gross Power10.2 kW @ 2500 rpm kW
Net Power10.2 kW
Engine Power14 HP
Displacement700 cc
Number of Cylinders3 Nos
Rated RPM2500 rpm
Emission StandardStage V / Tier 4
Max Torque 43.5 Nm
Fuel TypeDiesel

Operating Weights

Operating Weight2039 kg
Machine Weight2039 kg
Counterweight41 kg
Ground Pressure31.1 kPa

Hydraulic System

Main Pump TypeDual piston pump with gear pump
Maximum Hydraulic Flow 41.30  L/min
Maximum System Pressure180 bar
Hydraulic Oil Capacity19 litres
Auxiliary Hydraulic Flow30 L/min

Working Range

Maximum Digging Depth2343 mm
Maximum Vertical Wall Digging Depth2,385  mm
Maximum Reach at Ground Level4,089  mm
Maximum Dumping Height2,608 mm
Maximum Cutting Height2610 mm
Boom Length1.6 m
Arm Length1200 mm
Bucket Breakout Force20.835 kN
Arm Tear-out Force9.2 kN

BOBCAT E20Z EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹48,938

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount₹22,00,000
Interest Amount (12 %)₹7,36,267
Total Amount Payable₹29,36,267

BOBCAT E20Z Pros and cons

like

Pros

  • Excellent for tight & confined spaces
  • Compact and maneuverable
  • Strong digging performance for its class
    • dislike

    Cons

  • Lower engine power
  • Smaller fuel tank
  • No enclosed AC cabin (in many markets)

    • Download BOBCAT E20Z Brochure PDF

    Download BOBCAT E20Z brochure online. Check out the BOBCAT E20Z PDF brochure at Only Heavy with all features and specifications.

    BOBCAT E20Z Uses

    uses

    Excavation

    uses

    Digging

    uses

    Loading

    uses

    Construction

    uses

    Material handling

    uses

    Trenching

    BOBCAT E20Z Loan Offers
