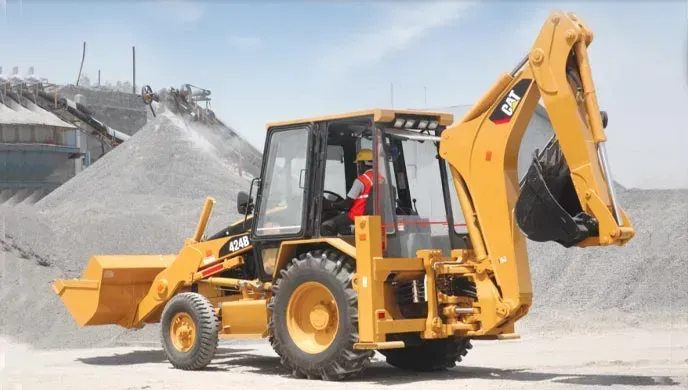

CAT 424 B

star

5

Ex-Showroom Price

₹ 34 L - 34.98 L

Diesel

Diesel

0.23 Cu.m

0.23 Cu.m

4850 mm

4850 mm

Download CAT 424 B Brochure

Download CAT 424 B brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of CAT 424 B

Max. reach at full height

Max. reach at full height

5637 m

Max Operating Weight

Max Operating Weight

8000 kg

Loader Bucket capacity

Loader Bucket capacity

1 Cu.m

Backhoe Bucket capacity

Backhoe Bucket capacity

0.23 Cu.m

Max Dig Depth

Max Dig Depth

4850 mm

Max. lift capacity

Max. lift capacity

2396 kg

About CAT 424 B Overview

The CAT 424B is a 75-76 HP, 7,900-8,000 kg class backhoe loader commonly used in Indian construction, offering a maximum dig depth of roughly to meters. Key features include a 4-cylinder engine, a 12...

CAT 424 B Specs & Features

Engine

ModelKOEL/4R - 1040 T Turbo Charged, direct injection
Engine Displacement4160 cc
Engine Power76 hp
Maximum torque424 Nm
Fuel TypeDiesel
Transmission TypeCat Power Shuttle transmission

Loader General

Dump height2633 mm
Load over height4015 mm
Hinge pin height3321 mm
Max reach at full height (bucket dumped)5637
Loader Bucket capacity1 Cu.m
Bucket breakout force3966 Kgf
Max Pay Load3586 Kg
Dump Angle45 Degree
Loader Arm Breakout Force5390 kgf

Backhoe

Max dig depth4850 mm
Max working height5701 mm
Backhoe bucket capacity0.23 Cu.m
Bucket rotation205 Degree
Dipper tear out force3010 Kgf
Max lift capacity2396 Kg
Max Load Over Height4015 mm

Overall Dimension & Weight

Max operating weight8000 Kg
Transport length5760 mm
Width over stabilizer / bucket2360 mm
Wheelbase-
Minimum ground clearance320 mm
Height to top of cabin2900 mm

CAT 424 B EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹73,407

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount₹33,00,000
Interest Amount (12 %)₹11,04,401
Total Amount Payable₹44,04,401

CAT 424 B Pros and cons

like

Pros

  • Strong Performance & Fuel Efficiency
  • Powerful Hydraulic & Loader Design
  • Balanced Excavation Capability
    • like

    Cons

  • CAT machines tend to be priced at a premium compared to some competing models. This can make initial investment or replacement part costs higher.
  • The max travel speed (~37.5 km/h) is slightly lower than some competitors like JCB or other brands, which may be noticeable during long road moves.
  • Some comparisons show CAT offering a 1‑year standard warranty, which may be shorter than some rivals’ extended offers.

    • Download CAT 424 B Brochure

    Download CAT 424 B brochure online. Check out the CAT 424 B PDF brochure at Only Heavy with all features and specifications.

    CAT 424 B Uses

    uses

    Material Handling

    uses

    Goods Delivery

    uses

    Excavation

    uses

    Digging

    uses

    Loading

    CAT 424 B Loan Offers

    location

    Explore CAT 424 B Alternatives

    ACE AX-124New

    ACE AX-124

    Engine Power

    3783 CC

    Bucket Capacity

    1.1 Cu.m

    Digging Depth

    4250 mm

    Ex-showroom Price

    ₹ 23 L - 31 L

    BOBCAT B900 Xtra CEV-VNew

    BOBCAT B900 Xtra CEV-V

    Engine Power

    2500 CC

    Bucket Capacity

    1 Cu.m

    Digging Depth

    4200 mm

    Ex-showroom Price

    ₹ 18 L - 20 L

    Bull GRANDIA Backhoe LoaderNew

    Bull GRANDIA Backhoe Loader

    Engine Power

    4400 CC

    Bucket Capacity

    1.1 Cu.m

    Digging Depth

    4600 mm

    Ex-showroom Price

    ₹ 37 L - 37.99 L

    CASE 770 NX New

    CASE 770 NX

    Engine Power

    3900 CC

    Bucket Capacity

    1.1 Cu.m

    Digging Depth

    4400 mm

    Ex-showroom Price

    ₹ 35 L - 37.01 L

    CAT 424New

    CAT 424

    Engine Power

    3600 CC

    Bucket Capacity

    1 Cu.m

    Digging Depth

    4707 mm

    Ex-showroom Price

    ₹ 34 L - 34.99 L

    ESCORTS BLX75K New

    ESCORTS BLX75K

    Engine Power

    3680 CC

    Bucket Capacity

    1.1 Cu.m

    Digging Depth

    4770 mm

    Ex-showroom Price

    ₹ 38 L - 39.99 L

    JCB 3DXNew

    JCB 3DX

    Engine Power

    4800 CC

    Bucket Capacity

    1.1 Cu.m

    Digging Depth

    4770 mm

    Ex-showroom Price

    ₹ 35 L - 38 L

    JB Industries JBI-06New

    JB Industries JBI-06

    Engine Power

    2900 CC

    Bucket Capacity

    1 Cu.m

    Digging Depth

    4600 mm

    Ex-showroom Price

    ₹ 22 L - 23.99 L

    Calculate your Monthly Fuel Cost

    The calculations provide an estimated amount, but actual figures may vary depending on local fuel prices, electricity rates, and other factors

    Daily Fuel Usage (Litres)

    48 Litres Per Day

    Daily Fuel Cost

    ₹4560 Per Day

    Monthly Fuel Cost

    ₹118560 Per Month

    Petrol pump

    Compare Top BackHoe Loaders

    CAT 424 B ACE AX-124

    VS

    CAT 424 B

    ACE AX-124

    ₹ 34 L - 34.98 Lvs₹ 23 L - 31 L
    Compare Now
    CAT 424 B BOBCAT B900 Xtra CEV-V

    VS

    CAT 424 B

    BOBCAT B900 Xtra CEV-V

    ₹ 34 L - 34.98 Lvs₹ 18 L - 20 L
    Compare Now
    CAT 424 B Bull GRANDIA Backhoe Loader

    VS

    CAT 424 B

    Bull GRANDIA Backhoe Loader

    ₹ 34 L - 34.98 Lvs₹ 37 L - 37.99 L
    Compare Now
    CAT 424 B CASE 770 NX

    VS

    CAT 424 B

    CASE 770 NX

    ₹ 34 L - 34.98 Lvs₹ 35 L - 37.01 L
    Compare Now
    CAT 424 B CAT 424

    VS

    CAT 424 B

    CAT 424

    ₹ 34 L - 34.98 Lvs₹ 34 L - 34.99 L
    Compare Now
    CAT 424 B ESCORTS BLX75K

    VS

    CAT 424 B

    ESCORTS BLX75K

    ₹ 34 L - 34.98 Lvs₹ 38 L - 39.99 L
    Compare Now
    CAT 424 B JCB 3DX

    VS

    CAT 424 B

    JCB 3DX

    ₹ 34 L - 34.98 Lvs₹ 35 L - 38 L
    Compare Now
    CAT 424 B JB Industries JBI-06

    VS

    CAT 424 B

    JB Industries JBI-06

    ₹ 34 L - 34.98 Lvs₹ 22 L - 23.99 L
    Compare Now

    Talk to Dealer

    Find nearest dealer in your area with us and fulfil your dreams by buying the best backhoe loader matching your needs.

    FAQs on CAT 424 B

    Do you have more questions?

    End-to-end payments and financial management in a single solution. Meet the right platform to help realize.

    What type of engine does the CAT 424 use?

    Is the CAT 424 fuel‑efficient?

    Can it handle both tough terrain and smoother sites?

    Is it comfortable for long work shifts?

    How does the CAT 424 compare with JCB 4DX?
