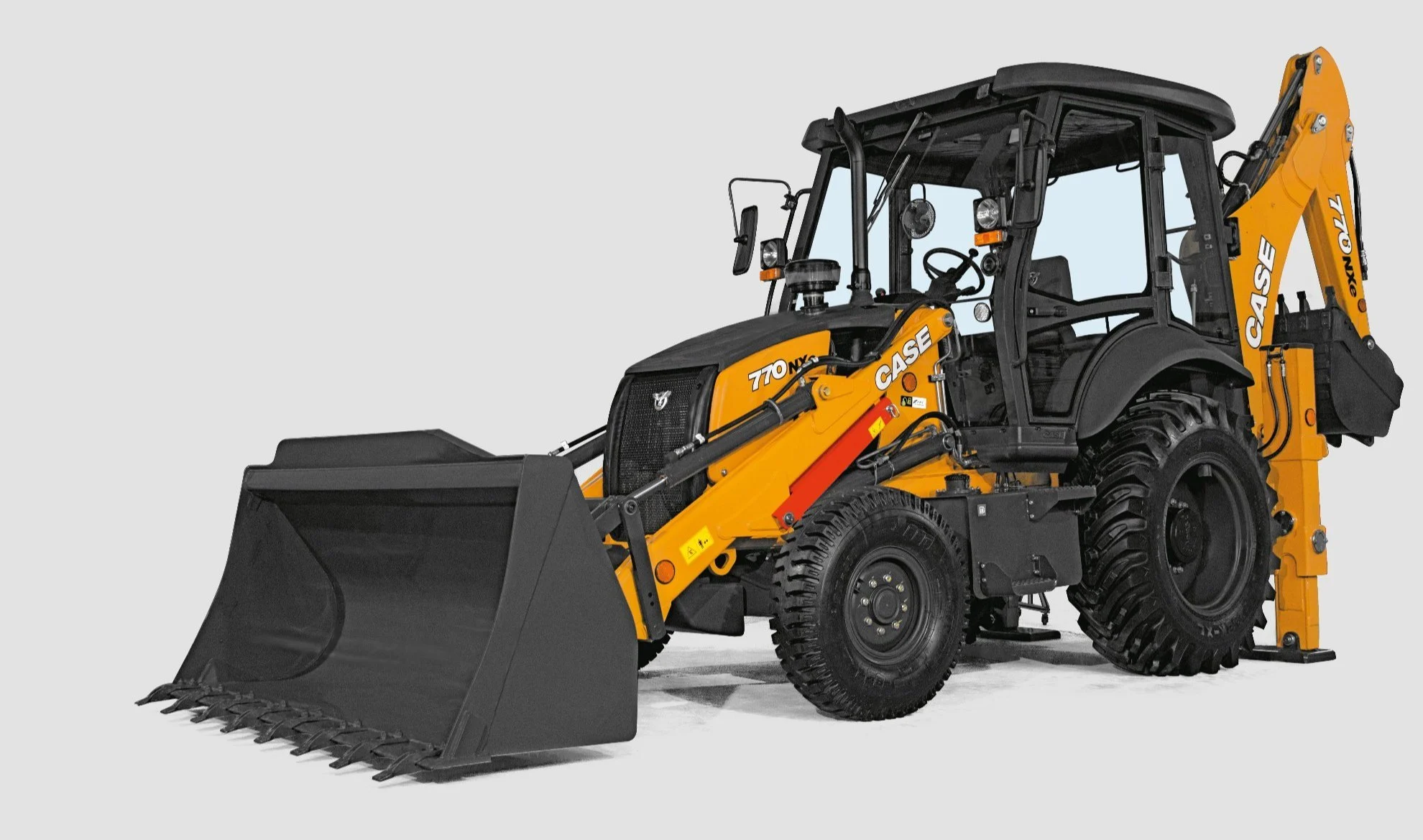

CASE 770NXe

star

5

Ex-Showroom Price

₹ 27.99 L - 29.99 L

Diesel

Diesel

0.26 Cu.m

0.26 Cu.m

4400 mm

4400 mm

Download CASE 770NXe Brochure

Download CASE 770NXe brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of CASE 770NXe

Max. reach at full height

Max. reach at full height

1190 m

Max Operating Weight

Max Operating Weight

7610 kg

Loader Bucket capacity

Loader Bucket capacity

1.1 Cu.m

Backhoe Bucket capacity

Backhoe Bucket capacity

0.26 Cu.m

Max Dig Depth

Max Dig Depth

4400 mm

Max. lift capacity

Max. lift capacity

1417 kg

About CASE 770NXe Overview

The CASE 770 NXe is a compact yet capable backhoe loader designed for construction, excavation, loading, and general earthmoving jobs where fuel efficiency, comfort, and productivity are key prioritie...

CASE 770NXe Specs & Features

Engine

ModelS8000
Engine Displacement3900 cc
Engine Power49.5 hp
Maximum torque252.2 Nm
Fuel TypeDiesel
Transmission Type4F-4R Shuttle Synchromesh Transmission

Loader General

Dump height2720 mm
Load over height3300 mm
Hinge pin height3580 mm
Max reach at full height (bucket dumped)1190
Loader Bucket capacity1.1 Cu.m
Bucket breakout force5275 Kgf
Max Pay Load1925 Kg
Dump Angle45 Degree
Loader Arm Breakout Force5110 kgf

Backhoe

Max dig depth4400 mm
Max working height5490 mm
Backhoe bucket capacity0.26 Cu.m
Bucket rotation185 Degree
Dipper tear out force2751 Kgf
Max lift capacity1417 Kg
Max Load Over Height3640 mm

Overall Dimension & Weight

Max operating weight7610 Kg
Transport length5880 mm
Width over stabilizer / bucket2280 mm
Wheelbase-
Minimum ground clearance380 mm
Height to top of cabin2880 mm

CASE 770NXe EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹60,038

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount₹26,99,000
Interest Amount (12 %)₹9,03,266
Total Amount Payable₹36,02,266

CASE 770NXe Pros and cons

like

Pros

  • The 49.5 HP engine with variable displacement hydraulics delivers better fuel economy than many competitors and older CASE models.
  • Spacious ROPS/FOPS cabin with ergonomic layout, increased storage space, and modern features like digital alerts and optional telematics improves all‑day comfort.
  • Electro‑hydraulic control and improved pump design optimize flow and response while reducing unnecessary fuel use.
    • like

    Cons

  • At 49.5 HP and ~252 Nm torque, the 770 NXe may feel underpowered for very heavy digging or lifting jobs compared to larger 60–74 HP competitors.
  • Being primarily 2WD with no standard 4WD option, traction on very soft ground or steep terrain may be reduced.
  • Some NXe versions ship with BS‑III/older compliance, which may not meet the latest emissions requirements in all regions.

    • Download CASE 770NXe Brochure

    Download CASE 770NXe brochure online. Check out the CASE 770NXe PDF brochure at Only Heavy with all features and specifications.

    CASE 770NXe Uses

    uses

    Material Handling

    uses

    Goods Delivery

    uses

    Excavation

    uses

    Digging

    uses

    Loading

    CASE 770NXe Loan Offers

    location

    Explore CASE 770NXe Alternatives

    ACE AX-124New

    ACE AX-124

    Engine Power

    3783 CC

    Bucket Capacity

    1.1 Cu.m

    Digging Depth

    4250 mm

    Ex-showroom Price

    ₹ 23 L - 31 L

    BOBCAT B900 Xtra CEV-VNew

    BOBCAT B900 Xtra CEV-V

    Engine Power

    2500 CC

    Bucket Capacity

    1 Cu.m

    Digging Depth

    4200 mm

    Ex-showroom Price

    ₹ 18 L - 20 L

    Bull GRANDIA Backhoe LoaderNew

    Bull GRANDIA Backhoe Loader

    Engine Power

    4400 CC

    Bucket Capacity

    1.1 Cu.m

    Digging Depth

    4600 mm

    Ex-showroom Price

    ₹ 37 L - 37.99 L

    CASE 770 NX New

    CASE 770 NX

    Engine Power

    3900 CC

    Bucket Capacity

    1.1 Cu.m

    Digging Depth

    4400 mm

    Ex-showroom Price

    ₹ 35 L - 37.01 L

    CAT 424New

    CAT 424

    Engine Power

    3600 CC

    Bucket Capacity

    1 Cu.m

    Digging Depth

    4707 mm

    Ex-showroom Price

    ₹ 34 L - 34.99 L

    ESCORTS BLX75K New

    ESCORTS BLX75K

    Engine Power

    3680 CC

    Bucket Capacity

    1.1 Cu.m

    Digging Depth

    4770 mm

    Ex-showroom Price

    ₹ 38 L - 39.99 L

    JCB 3DXNew

    JCB 3DX

    Engine Power

    4800 CC

    Bucket Capacity

    1.1 Cu.m

    Digging Depth

    4770 mm

    Ex-showroom Price

    ₹ 35 L - 38 L

    JB Industries JBI-06New

    JB Industries JBI-06

    Engine Power

    2900 CC

    Bucket Capacity

    1 Cu.m

    Digging Depth

    4600 mm

    Ex-showroom Price

    ₹ 22 L - 23.99 L

    Calculate your Monthly Fuel Cost

    The calculations provide an estimated amount, but actual figures may vary depending on local fuel prices, electricity rates, and other factors

    Daily Fuel Usage (Litres)

    48 Litres Per Day

    Daily Fuel Cost

    ₹4560 Per Day

    Monthly Fuel Cost

    ₹118560 Per Month

    Petrol pump

    Compare Top BackHoe Loaders

    CASE 770NXe ACE AX-124

    VS

    CASE 770NXe

    ACE AX-124

    ₹ 27.99 L - 29.99 Lvs₹ 23 L - 31 L
    Compare Now
    CASE 770NXe BOBCAT B900 Xtra CEV-V

    VS

    CASE 770NXe

    BOBCAT B900 Xtra CEV-V

    ₹ 27.99 L - 29.99 Lvs₹ 18 L - 20 L
    Compare Now
    CASE 770NXe Bull GRANDIA Backhoe Loader

    VS

    CASE 770NXe

    Bull GRANDIA Backhoe Loader

    ₹ 27.99 L - 29.99 Lvs₹ 37 L - 37.99 L
    Compare Now
    CASE 770NXe CASE 770 NX

    VS

    CASE 770NXe

    CASE 770 NX

    ₹ 27.99 L - 29.99 Lvs₹ 35 L - 37.01 L
    Compare Now
    CASE 770NXe CAT 424

    VS

    CASE 770NXe

    CAT 424

    ₹ 27.99 L - 29.99 Lvs₹ 34 L - 34.99 L
    Compare Now
    CASE 770NXe ESCORTS BLX75K

    VS

    CASE 770NXe

    ESCORTS BLX75K

    ₹ 27.99 L - 29.99 Lvs₹ 38 L - 39.99 L
    Compare Now
    CASE 770NXe JCB 3DX

    VS

    CASE 770NXe

    JCB 3DX

    ₹ 27.99 L - 29.99 Lvs₹ 35 L - 38 L
    Compare Now
    CASE 770NXe JB Industries JBI-06

    VS

    CASE 770NXe

    JB Industries JBI-06

    ₹ 27.99 L - 29.99 Lvs₹ 22 L - 23.99 L
    Compare Now

    Talk to Dealer

    Find nearest dealer in your area with us and fulfil your dreams by buying the best backhoe loader matching your needs.

    FAQs on CASE 770NXe

    Do you have more questions?

    End-to-end payments and financial management in a single solution. Meet the right platform to help realize.

    What kind of jobs is the CASE 770 NXe best suited for?

    How does its fuel efficiency compare to other CASE models?

    Does it have different working modes?

    How comfortable is the operator cabin?

    What are the maintenance advantages?
